Making Machine for Car License Number Plate China Automatic Pressing Machine

Product Description

Product Description
ONE SET OF CAR LICENSE PLATE PRODUCTION LINE license plates making assembly line / Number plates making assembly line Blank license late making production line, basicly including three main steps:
1) Flatting Aluminum,
2) Lamination,
3)Punching,
Also we can add:
1) Hologram Hot Stamping,
2) laser watermark making ,
3) Embossing border line etc. we can make license plate production line according to customer's requirements, design and make suitable for local license plate manufacturing. Also we can supply raw material , which icluding printed and laserMarker-made reflective film, alujminum etc. In short, we can give a complete solution for making security license plates, including supply raw material, Design and Make all required machines, molds, training service etc.

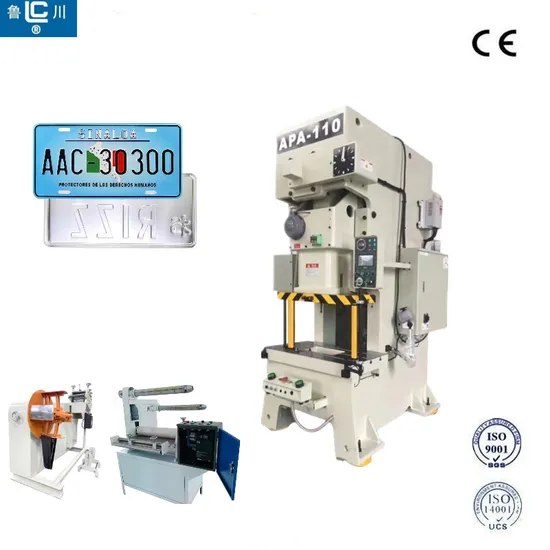

Hangyu High Precision Power Press Main Performance and Characteristics: APA single point open type power press*Pneumatic punch presses use the high-pressure gas produced by compressors to force metal into molds for wafer
processing,stamping, embossing, etc. *The application fields are wide, such as: bolts and nuts, door and window hinges, precision
electronic components, computercases, even missile aircraft... All can be produced by APA with mold.
* The following is the production sample display:
Product Parameter :

Specification	APA-25	APA-35	APA-45	APA-60	APA-80	APA-110	APA-160	APA-200
Capacity	25	35	45	60	80	110	160	200
Rate tonnage point	3.2	3.2	3.2	4	4	6	6	6
Speed changing	60-140	40-120	40-100	35-90	35-80	30-60	20-50	20-50
Stroke	70	70	80	120	150	180	200	200
Die height	195	220	250	310	340	360	460	460
Slide adjustment	50	55	60	75	80	80	100	110
Presses weight	2.1	3	3.8	5.6	6.5	9.6	16	23

2. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf.
3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.
4.PLC from Omron electrical control system allows various auto-equipment reprogrammed accord-lng to different requirements and perform various functions,to ensure high reliability and high adaptability,
5. Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.
6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
7. Auto grease lubrication system,easy stroke adjustment mechanism increases press versatility tremendously.
8. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
9. The press adopts cam controller which be combined with proximity switch ,which will realize the synchronous detection and monitoring reliably.
Ram adjustment and Structure:
The RAM is a whole cast form construction which adopts imported hydraulic overload protector from Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press.
Electrical system and the safety interlock:1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Detailed Photos
(1) HIGH ACCURACY DECOILER &STRAIGHTENERFeature:
1.Decoiler and straightener two in one style can save installation space,lower transition procedure.
2.The Decoiler and straightener are controlled separately by independent electricity boxes.
3.Straightener adopts the cardan joint and gear transmission.
4.The straightening gear adopts the dial indicator and is able to find out the leveling up point rapidly.
5. The additional back pressure wheel enables the straightening result much better.
6.The additional lubrication system prolonged the machine life span.

Product Name	High Accuracy Decoiler &Straightener	The Widest Range	300mm
Material Thickness	0.2-1.5mm	Coil Stock Outer Diameter	1300mm
Coil Stock Inner Diameter	450-530mm	The Maximum Weight of Coil Stock	1000kg
Expansion Style	Automatic Hydraulic Pressing	Speed	0-15m/min
Voltage	380V	Power	2.2KW

(2) HEATING MACHINE

Product Name	Heating Machine	Temperature	0-200 Degree
Voltage	380V	Power	4KW

(3)AUTOMATIC FILM LAMINATING MACHINE

Product Name	Automatic Film Laminating Machine	The Maximum Width	400mm
Speed	0-15m/min	Voltage	380V
Power	0.75KW	Coil Stock Fixed Type	Pneumatic

(4) SERVO FEEDER1. High-precision Feeding
Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feed back system, so that the precision can
maintain within 0.03mm.
2. Phase-style Feeding Function
It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and
production of special products (option).
3. Manual Model
It can input 3 phases manual speed, which can let users operate more easily and feed material more accurately.
4. High-efficiency Release Device
It can set up release angle quickly, only match cam signal of and adjusted feed thickness can be done.
5. Feeding Length Setting
Input feed length on the controller panel directly.
6. Feeding Unit
The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC60C and hard
chrome plated.(5) PUNCHING MACHINE
(6) DAMPING MATERIAL RECEIVING MACHINE

Product Name	Damping Material Receiving Machine	The Widest Range	300mm
Coil Stock Outer Diameter	1400mm	Coil Stock Inner Diameter	450mm-530mm
The Maximum Weight of Coil Stock	500kg	Expansion Style	Manual Operation
Speed	0-15m/min	Voltage/ Power	380V/ 2.2KW

(7)PRESSING MACHINE

Item	Data	Unit
Nominal pressure	1000	KN
Maximum hydrautic working pressure	<30	mpa
Allow maximum size of working	580x300x50	mm
periodic time	2-5	Second
outside dimension	1300x600x1400	mm
Net weight	900	kg
Any specification are welcome

(8)HOT PRINTING MACHINE
1.Power:220V 50Hz
2.Consumption oF upper motor:90W
3.Consumption oF lower motor:60W
4.Heating Pipe:500W*4
5.Stamping temperature:0-300ºC
6.Width of stamping:less 300mm
7.Speed:4-5m/min
8.Weight:155kgs
9.Dimensions:940*800*900mm
10.Production Capacity: 3000pcs/day
Print finish immediately,no need wait to dry
(9)MOLD
High hardness
wear-resistant
Quenching treatment
Brittle resistance
Advantage
