Hgstar Manufacturer 2024 Automatic CNC Fiber Laser Cutting Machine Steel Pipe Laser Cutter Metal Pipe Tube Angle Steel Channel Steel Beam Cutting for Sale

Hgstar Manufacturer 2024 Automatic CNC Fiber Laser Cutting Machine Steel Pipe Laser Cutter Metal Pipe Tube Angle Steel Channel Steel Beam Cutting for Sale

US$9,800.00-48,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SMART Tube 6245 Pro
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber Laser
Laser Technology
Laser Control Fault Cutting
Tube Feeding Length
6000 mm
Maximum Single Tube Weight
30kg/M
Feeding Method
Manual
X Y Positioning Accuracy
±0.05mm
X Y Repeat Positioning Accuracy
±0.03mm
a W Axis
Infinite Rotation
Transport Package
Wooden Box
Specification
HGSTAR supporting models
Trademark
Hgstar
Origin
Wuhan, Hubei. China
Production Capacity
500sets/Month

Product Description

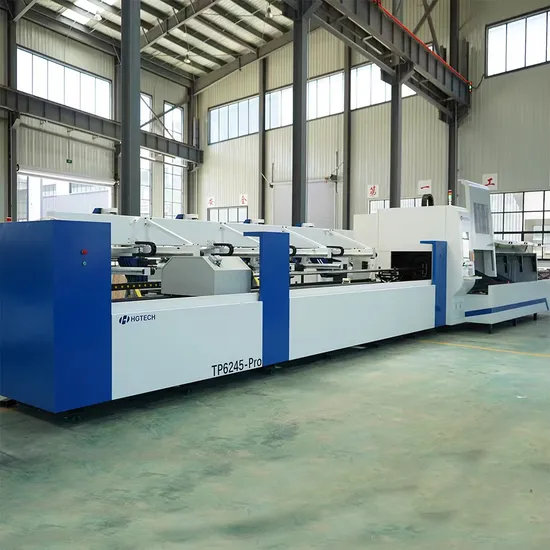

SMART TUBE 6245 Laser Cutting Machine
Product Description
SMART TUBE 6245 aser pipe cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. It has strong cutting capacity, "flying" cutting speed, ultra-high stability, high-quality processing, extremely low operating costs, and super high adaptability.
Parameter
Equipment Model SMART TUBE 6245 Pro
Chuck diameter Φ20mm~Φ230mm
Material type Carbon steel or round tube, square tube, rectangular tube, oval tube, etc ofstainless steel
Tube feeding length 6000 mm
Maximum blanking length of the tube 1500 mm,3500m(Optional)
Maximum single tube weight 30Kg/m
Laser cutting thickness Carbon steel 1-10mm (thickness and material are related to laser generator)
Feeding method Manual
XY Positioning accuracy ±0.05mm
XY repeat positioningaccuracy ±0.03mm
A,W axis Infinite rotation

laser cutting special function
CNC Control System (Tube Pro FSCUT3000)
>The control system consists of numerical control systems, PLC and control cabinet.etc.
>HGSTAR adopt the control system develop based on TubePro FSCUT3000, dedicated for laser cutting, FSCUT3000, have modular, openness and unity structure, easy to operate, programming, it's a kind of visualization and provide a function for all technology innovation platform.
Handheld Operating Unit
>Integrated digital input, digital output, digital potentiometer signal, MPG, etc.
>Very convenience during worker debugging and operation.
Software generated processing code
>CAD/CAM software can read 3D graphics that transformed from SolidWorks drawings, and can also draw standard tube cutting graphics in CAD/CAM software.
Artificial feeding system
>Manually transport a single tube to the machine bed.
>The sensor on the bed automatically senses the tube and execute the mounting program.
Security Protection Function
>Digital interlocks and safety devices are installed in the laser to ensure that the laser is not turned on for safe operation and maintenance.
>The perimeter of the cutting area is protected to protect the operator from motion system and laser reflections. Feature
Double Pneumatic Chucks Detecting sensor for front and rear chuck opening & clamping, preventing possible collision Function of front chuck ventilation, for dust prevention from entry into chucks Front chuck avoidance cutting
Autofocus Cutting Head The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.
Unloading Device The unloading device, made of concave wheels and turning plates, is especially suitable for supporting heavy tubes and keep them stable while unloading.

Sample
Applicable to cutting carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
After Sales Service

1. Warranty period: From the acceptance qualified date, the warranty period will be 1 (one) year, but in any case, not more than 13 months after B/L date. Seller is responsible to offer free fittings in these years (except consumable part.) Buyer has to send the damaged fitting to sellers. After the warranty, we will also provide favorable service of long term technical supports and spares supply to ensure machine's stable and continuous running.
2. The artificial damage in the warranty period and damage after warranty period, Seller offers paid service.
3. The Seller will give 24 hours service support during warranty time, and giving technical guide by email, telephone, Fax for daily maintenance, if need local support, Buyer has to pay for the travel and
accommodation & meal cost for the people from seller's side, no labor charge require. If products are out of warranty and require on site service, Buyer have to pay for the travel and accommodation & meal cost for the people from seller's side, labor charge is require, USD200/day per people.
4. About the transportation expanses of spare parts will be supported by both parties in the warranty period, like Buyer support the cost of transportation for damage spare part back to supplier; Seller support the new spare part deliver to Buyer.
Packaging and shipping
Company Profile
About Us


Certifications



Business Partners:

Exihibition

FAQ:
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!
