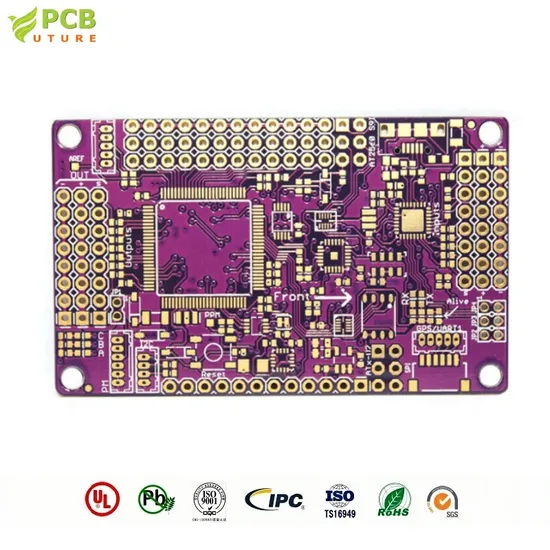

Low Cost High Quality Flex Bare 2/4/6/8 Layer Metal Core Advanced PCB Board Printing Prototype Manufacturing PCBA

Product Description

Product Description

PCB Capability
Layer count	1-50 layers
Material	FR4,Tg=135,150,170,180,210,AL base,Rogers,Nelco,CEM,Flex,and etc
Copper thickness	1/2oz,1oz,2oz,3oz,4oz,5oz-10 oz
Board thickness	0.2-10.0mm
Min.line width/space	3/3 mil(75/75um)
Min. drill size	8 mil(0.2mm)
Min. HDI laser drill size	3 mil(0.067mm)
Tolerance of hole size	2 mil(0.05mm)
PTH copper thickness	1 mil(25 um)
Solder mask color	Green,blue,yellow,white,black,red
Peelable solder mask	yes
surface treating	HASL(ROHS), ENIG,OSP,IMMERSION SILVER,IMMERSION TIN,flash gold,gold finger
Gold thickness	2-40u" (0.05-0.76um)
Special process	Buried Hole, Blind Hole, Partial high density, Back drilling, and Impedance control, etc.
Quality standard	IPC Class 2 and IPC Class 3
PCBA Capability
Technology	SMD, THT,Double-sided SMT Assembly, Fine Pitch to 0.8mils, BGA Repair and Reball
SMT line	11 SMT lines
SMT capability	20,000,000 points per day
DIP capability	300,000 points per day
Experiences	QFP, BGA, μBGA, CBGA, VFBGA
Testing	Flying Probe Test,X-ray Inspection, AOI Test, ICT(In Circuit Test),FCT(Functional Circuit Test)
Process	Lead-free
Programming	Yes
Conformal coating	Yes
Other capabilities:	Repair/rework services Mechanical assembly Box build Mold and plastic injection.

Product Applications

Product Applications	Industrial
	communication
	medical
	consumer electronics
	artificial intelligence
	energy
	transportation

Main Products
Company Profile PCBfuture was founded in 2009 provide unparalleled products and service in Electronic manufacturing(EMS) industry. We deliver design, PCB manufacturing, PCB assembly, testing, box build, supply chain, and product management services. With abundant product development experience and vertically integrated manufacturing. we are committed to providing clients with innovative design services and joint development business models, to comprehensively and efficiently satisfy all of our customer's needs.
As one of the world-leading PCB/PCBA manufacturing enterprises. In order to provide cost-effective and excellent customer experiences, PCBfuture has a strong team of R&D, manufacturing, quality control, and sales service expertise, as well as a high degree of employee cohesion, and operates globally. There will be a excellent idea to work with us together to reduce your cost and keep the same high quality.
Our Partners&Certifications
Our company was found in 2009, have more than 16 years experiences in Turnkey PCB assembly industry.
Now we have 11 SMT production lines and more than 300 employees.
Why choose us? Reduce cost for more than 12,300 projects Fast Turnkey PCB assembly services High quality PCB manufacturing No min order quantity 24 hours technical support Quality guaranteed services Free DFM check for all projects 99%+ customer satisfaction rate
Our Customers&Exhibitions
Packaging & Shipping

Shipping Port	Shenzhen, China
Shipping Time	1-20Days
MOQ	1

Customer feedback
FAQ Q1: What service do you have?
A: We provide turnkey solution including PCB design, Software development, PCB Assembly, Enclosure design, Mold-making,Plastic injection, Finish product assembly and function testing.
Q2: Is PCBfuture a factory or trade company?
A: PCBfuture is a 16-year experienced professional contract manufacturer to provide one stop Turnkey PCB assembly and electronics manufacturing service.
Q3: Can we inspect quality during production?
A: Yes, we are open and transparent on each production process with nothing to hide. Customers are welcome to inspect our production process and check in house.
Q4: How long does it take for PCBA quote?
A:Depend on project's complexity. Normally 1-2 days is enough for our engineers to evaluate.
Q5: Do you have any minimum order quantity (MOQ) requirement?
A:No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
Q6: Do you provide free prototype PCB assembly service?
A:Yes, we provide free prototype PCB assembly service, and the qty is no more than 3 pcs. But we need to charge the samples first, and return the PCB sample cost in your mass production if your sample order value not more than mass production value's 1% (Not including freight).
Q7: Can you unsure the quality of components for our PCB?
A: With years' experience, PCBFuture have built reliable components sourcing channel with world well-know distributors or manufacturers. We can get best support and good price from them. What's more, we have quality control team to inspect and verify the quality of components. You can be relax for the quality of components.
Q8: Can I have a credit account?
A: For the long-term customers who cooperate with us more than six months and with frequent orders every month, we offer credit account with 30-day payment terms. For more details and confirmation, please contact us and we will get back to you quickly.
Q9: Why some of the components sourcing price from you are lower than the price which shows in distributors websites?
A:We work with many wrold famous distributors like Digi-Key, Mouse, Arrow and etc, since our large annual purchase amount, they give us much lower discount.
