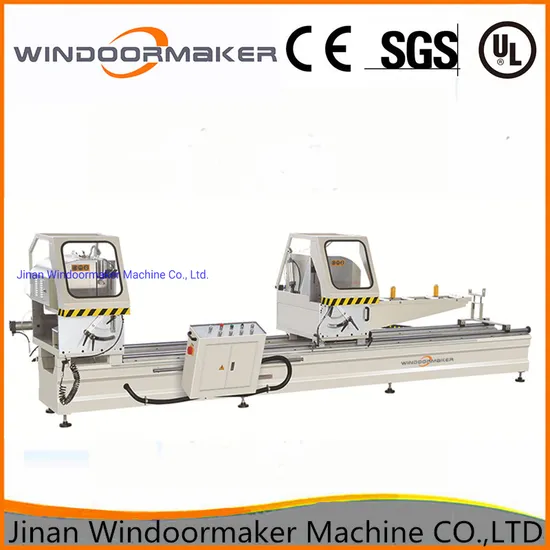

Aluminum Cutting Machine Aluminium Double Head Cutting Saw Machine

Product Description

Product Description
Specification:
Used for Aluminum, PVC and Curtain-wall profile accurate Cutting Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work. Imported linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance. Two heads can work together or lonely,when together work ,one time can cut off the required length and angle. Air-hydraulic cylinder ensured the stable speed adjusting and saw blade working. Automatic angle cutting can be changed in 45° and 90°,Also can be changed in 45° to 90° by manual. Carbide saw blade for a high quality cutting and life. Safety system of shield can ensure the safe operation of man working. Product Parameters

Power supply	Made to order
Motor power	2*2.2KW
Motor rotary speed	2800r/min
Operation air pressure	0.5~0.8Mpa
Air consumption	200L/min
Cutting length	Max. 4200mm,Min. 400mm
Cutting width	Max. 135mm
Cutting angle	45°&90° (45° to 90°in manual)
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	Ra12.5 μm
Cutting height max	300mm×90°;200mm×45°
Feeding speed	Stepless timing 0~3m/min
Saw blade specification	φ500mm×4.4mm×φ30mm Z=120
Overall Dimension	5550×1750×1950mm
Weight	1800kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

Machine at old customer
