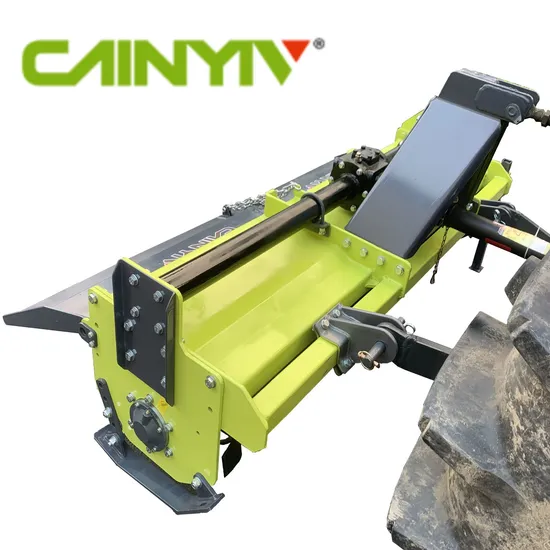

Chain Driven Rotary Tiller with CE

Chain Driven Rotary Tiller with CE

US$600.00-800.00 5 Pieces (MOQ)

Basic Info.

Model NO.
IGN
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Green
Warranty
One Year
HP
18-75
Tilling Depth
150mm
No. of Blade
18-42
Pto
540r/Min
Transport Package
Iron Frame Transport
Specification
1750*830*600
Trademark
qianyi
Origin
China

Packaging & Delivery

Package Size
1750.00cm * 830.00cm * 600.00cm
Package Gross Weight
369.000kg

Product Description

MODEL IGN 90 IGN 105 IGN 125
Structure Weight 250kg 265kg 285kg
Tilling Width 895mm 1045mm 1245mm
Tilling Depth 150mm 150mm 150mm
No. Of Blade 18 24 30
PTO Turning Speed 540r/min 540r/min 540r/min
Tractor HP 16-20hp 20-28hp 25-30hp

MODEL IGN 135 IGN 150 IGN 180
Structure Weight 300kg 320kg 350kg
Tilling Width 1345mm 1495mm 1795mm
Tilling Depth 150mm 150mm 150mm
No. Of Blade 30 36 42
PTO Turning Speed 540r/min 540r/min 540r/min
Tractor HP 25-30hp 30-50hp 40-75hp

Rotary tillers manufactured by Breviglieri are all PTO-driven and are used to loosen and mix both firm soil, during primary tillage, and tilled soil (e.g. during secondary tillage to prepare the seed bed).
The tilling implements, which can consist of hoe, radial blade or spike assemblies mounted on a horizontal rotor (4 or 6 per flange), work by cutting and ripping clods of soil.
Rotary tiller cultivation can be performed as an alternative to plowing. It is useful in that it effectively breaks up the earth, even uprooting crop residue, and therefore generally eliminates the need for additional soil preparation.
These machines are most widely utilized in the horticulture sector and on naturally loose ground; the working depth is generally not greater than 15 cm.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.
All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better price!"
