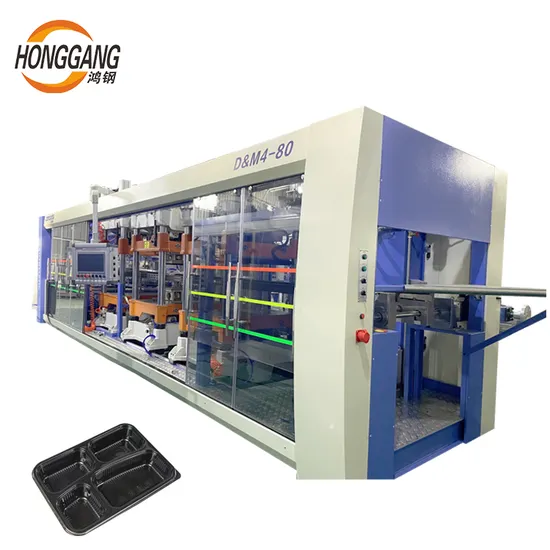

Four Station Full Automatic Plastic Disposable Tray Lids Thermoforming Machine

Product Description

Four Station Full Automatic Plastic Disposable Tray Lids thermoforming Machine Product Description

ThisFour Station Full Automatic Plastic Disposable Tray Lids thermoforming Machine used for producting high demand of disposable fresh/fast food,fruit plastic cups,boxex,plates,container,and pharmaceutical,wine,electrical blister packaging,PP,PS,PET,PVC,OPS plastic sheet etc.
Our Advantages

1. Fully servo driven machine.no noise.no vibration,forming good and fast.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet.reaching without wasting materials;
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.
Main function
1.positive and negative pressure forming device.
2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
Product Parameters

specification:
Forming area:	710×850×130 mm (W*L*H)
Forming speed:	12-20 stroke/minute
Machine size:	11000×2300×2600 mm (L*W*H)
Heat Furnace size:	7800×2600 mm (Three pieces ofbaking sheet)
configuration:
Pulling:	Delta servo driver
temperature control:	Delta temperature controlling moduls
Oil pump:	Germany Rexroth
Oil valve:	Germany Rexroth
Circuit:	Japan Fuji
Touch screen:	Delta
Transmission:	Imported from Japan
Electric control:	Delta,IDEC
Vacuum system:	Germany imported vacuum pump

Detailed Photos

7. Product processing samples:
8. Contact us If you are not sure if your material can be processed,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.forming and cutting length:
