Auto Tool Changer Press Brake, 2000mm Sheet Metal Bender Automatic Bending Machine for Batch Folding Carbon Steel/ Stainless/ Aluminum Panel Pipe

Product Description

Auto Tool Changer Press Brake, 2000mm Sheet Metal Bender Automatic Bending Machine for Batch Folding Carbon Steel/ Stainless/ Aluminum Panel Pipe

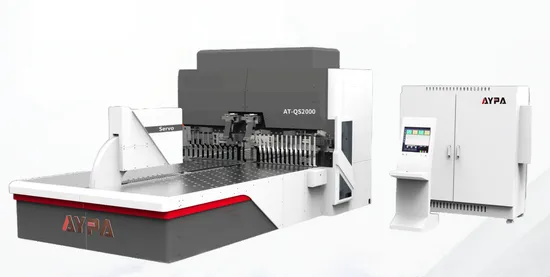

Product Description AYPA is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ AYPA automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display
Detailed Photos* Q235 steel plate
* High temperature annealing process* 42CrMo forging material
* Customized knives available
Product Parameters

ITEMS		UNIT	SPECIFICATIONS
Models			AT-QS2000
Feeding Structure		/	C-Type Upper Arm
Max. Bending Dimension		mm	2000*1250
Max. Bending Height		mm	170
Min. Bending Height		mm	5 (Based on sheet metal thickness)
Max. Bending Thickness	stainless steel (SUS)	mm	1.2
	Carbon steel (MS)	mm	2.0
	Aluminum (AL)	mm	3.0
Min. Inner Size of Four-side Bending		mm	370*310
Min. Inner Size of Opposite-side Bending		mm	310
Min. Arc Radius		mm	1.2
Min. Continuous Bending Speed		s	0.2
Bending Angle		°	0 - 180
Controlling Axes No.		set	28
Max. Feeding Speed		m/min	120
Equipment Dimension		mm	6463*3100*2930
Equipment Weight		ton	Approx. 18
Max Power		KW	105
Average Power		KW	5.5
Loading Robot Interface			Standard

Product Catalogue
Packaging & Shipping
Company ProfileAYPA is a technological innovation factory with over 20 patents.
* It specializes in producing CNC turret punch machine, bending machine, CNC deburring machine etc.
* Automatic bender can bend complex workpiece at one-time without manual operation.
* Servo press can automatically punch, roll, cut and form.
* Both can work with stack robot to realize highly automated cabinet, kitchenware, fire door, aluminum wall industry.
* We provide customers R&D, production and after-service.
AYPA represents our commitment to lead industry into new era.
FAQ1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.
