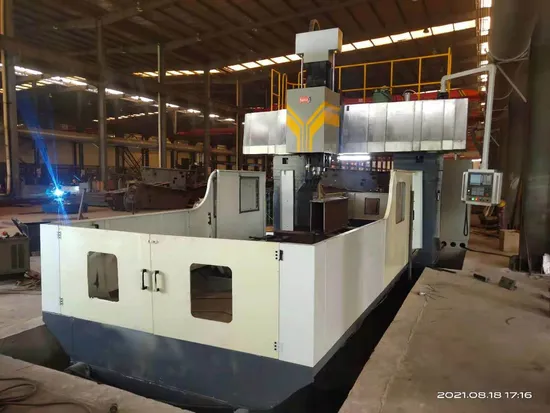

Gantry Boring Sktx-4020 CNC Milling Machining Center Series CNC Machinery

Product Description

The application of finite element analysis of the machine tool, the static and dynamic performance of the machine tool has been effectively predicted and optimized, so that the performance of the machine tool has been effectively guaranteed, has a high performance-price ratio, with low speed and high torque milling function. CNC machining process, to achieve automatic production.
Its structure is composed of bed, workbench, column, gantry frame, cross slide seat, slide type milling power head, lubrication system, chip removal system, cooling and protection device, balance system, electrical system, numerical control system and other main components.
First, the basic performance of the machine tool
This machine tool adopts the international advanced machine tool structure, applies finite element analysis, and effectively predicts and optimizes the static and dynamic performance of the machine tool, so that the performance of the machine tool is effectively guaranteed and has a high cost performance.
The machine tool is a table mobile CNC gantry drilling machine, which can use cemented carbide drill bits for internal cooling high-speed drilling or high-speed rigid twist drill bit external cold drilling. Widely used in engineering machinery, steel structure, bridge, pressure vessel, chemical environmental protection, ship and other industries. The processing process is numerically controlled, easy to operate, and can realize automated, high-precision, multi-variety, mass production.
Second, the main components of the machine tool
The main functional parts and key parts of the machine tool have high quality, and imported or famous brand supporting products are adopted.
Its structure consists of bed, workbench, column, gantry frame, cross slide, ram drilling power head, lubrication system and protection device, chip removal system, circulating cooling device, hydraulic balance system, electrical system , CNC system, disc tool magazine and other main components.
2.1: Bed - workbench
2.1.1: The bed and workbench are cast by high-strength cast iron material and resin process. The bed adopts a special rib plate arrangement to improve the rigidity and strength of the bed.
2.1.2: The bed-table guide pair adopts a three-row roller linear rolling guide pair, which has small dynamic and static friction changes, high sensitivity of the workbench, small high-speed vibration, no crawling at low speed, high positioning accuracy, and excellent servo drive performance; At the same time, the bearing capacity is large, the cutting vibration resistance is good, which can improve the characteristics of the machine tool, improve the accuracy and precision stability of the machine tool, and extend the service life of the machine tool.
2.1.3: The X-axis drive adopts AC servo motor through synchronous belt transmission and ball screw auxiliary drive to achieve X-direction feed.

Heavy-duty linear guide Precision ball screw
2.2: Beams
2.2.1: In order to meet the heavy-load cutting of the machine tool, the beam adopts two stepwise distribution roller guide structures, which will make the Y-axis guide rail have sufficient bending stiffness and torsional rigidity, and make the Y-axis guide rail have a long enough precision retention. It has the characteristics of small vibration at high speed, no crawling at low speed, high sensitivity of Y-axis drag plate, high positioning accuracy and excellent servo drive performance; At the same time, the bearing capacity is large, and the cutting vibration resistance is good.
2.2.2: The Y-axis adopts AC servo motor to directly drive the high-precision ball screw nut pair to realize the lateral movement of the Y-axis drag plate.
2.3: Y-axis drag plate and ram type drilling power head
2.3.1: T-shaped ram - Y-axis drag plate guide pair adopts sliding guide pair to achieve high precision retention and cutting vibration resistance. The stroke is 1000mm, and the Z-axis guide rail pair is a sliding guide rail pair, which adopts the form of guide rail quenching and pasting
2.3.2: The Z-axis AC servo motor is directly connected to the ball screw pair to realize the up and down movement of the ram.
2.3.3: The Y-axis drag plate is equipped with two single-acting hydraulic balancing cylinders of hydraulic balancing device, which is used to balance the weight of the ram and the main gearbox to reduce the no-load torque of the ball screw, reduce the wear of the ball screw, and maintain the precision stability of the ball screw. The Z-axis ball screw and spindle are located in the center of the Y-axis drag plate, which will not cause uneven force and thermal deformation displacement caused by offset.
2.3.4: The ram type drilling power head spindle bearing adopts the bearing of the Japanese company NSK, grease lubricated. The use of group bearings makes the spindle have high precision, high load and low temperature rise, which can not only withstand large power and high torque cutting, but also have high spindle accuracy and life. The center of the spindle is located in the center of the Z-axis ram guide for optimal rigidity and stability.
2.3.5: The spindle end is equipped with a high-pressure blower for cleaning iron filings.
2.4: Lubrication systems and guards
This machine tool is equipped with an automatic lubrication device, which can carry out regular and quantitative automatic lubrication of the motion pairs such as guide rails and lead screws. The centralized lubrication system has alarm functions such as oil shortage and low pressure, and each shaft guide rail has a lubricating oil recovery groove for centralized collection.
The X axis and Y axis of the machine tool are equipped with stainless steel dust-proof protective covers to prevent iron filings and coolant from entering the inside of the machine tool, so that the guide rail and lead screw are protected from corrosion, and waterproof splash iron chip baffles are installed around the table.
2.5: Hydraulic balancing system
The machine is equipped with a hydraulic balancing system to maintain the dynamic balance of the slide table and the hydraulic clamping of the tool.
2.5: Chip removal system
The iron filings in the processing area of the table can be transported to the iron chip lifting device in front of the bed by the screw chip conveyors on both sides of the bed, and then transported to the trolley by the chain chip lifting device on the front side.
2.6: Circulating cooling
The machine is equipped with a circulating cooling device paper tape filter, the filtration accuracy is ≤ 25μm, and there are high-pressure internal cooling pump and low-pressure external cooling pump respectively for the internal and external cooling of the tool. The paper belt filter has a water level monitoring function and can be interlocked with the spindle to ensure the normal use of the tool and spindle.
2.8: Electrical Systems
The electrical system conforms to ISO or national standards, CNC system control, independent electrical cabinet, reliable sealing of electric cabinet, industrial cooling air conditioning dust and dehumidification, maintain constant temperature of electric cabinet, and ensure the safe operation of machine tools; Electrical components are imported brands; The machine tool is equipped with lighting facilities, which is convenient for the operator to observe and operate at night; The machine tool is equipped with an electronic pulse handwheel, which is convenient for all-round operation; The logic control of the machine tool adopts the built-in PLC control of the system, which can detect and alarm faults, and the alarm interface is fully Chinese.
2.9: CNC system and operation station
CNC operation table installed on the gantry, can move longitudinally with the gantry, easy to operate, machine tool configuration Fanuc 0i-MF CNC system, using semi-closed-loop control, control X, Y, Z three-axis linkage, can achieve straight line, Arc interpolation function and rigid tapping function. Centralized operation control box and handheld unit, and equipped with RJ45 interface and LCD screen. In order to facilitate programming, storage, display and communication, the operation interface has functions such as man-machine dialogue, error compensation, and automatic alarm.
The machine has a chip breaking function, which can set the chip breaking time and chip breaking cycle on the man-machine interface. After setting the position, when the drill bit fast forward contact the workpiece, it will automatically switch to the working feed, and when the drill bit drills through the workpiece, it can automatically switch to fast rewind to realize the automatic feed cycle, and the working feed speed is set by numerical control. The machine tool requires an electronic handwheel operation function, when the first hole is drilled to set the feed position, drilling the remaining holes of the same kind can realize the fast forward→ work → fast retreat program. And it also has automatic chip breaking, chip removal, pause, drill bit protection function, power-off memory function, etc.
2.10: Disc tool changer
This machine is equipped with a disc tool changer, which can realize the automatic tool change function. The tool magazine capacity is 24 pieces, and the tool can be changed automatically according to the processing needs. The shank is based on MAS BT50 standard and the stud is 45°.
Third, technical parameters

	project	Parameter (mm).	remark
Main parameters	Maximum machined part shape (length × width × height)	4000×25000×1500 mm
	Machine dimensions (L× W×H)	11500×5800×5500 mm
	The distance between the two columns	2800 mm
	CNC system	FANUC 0i-MF
workbench	Table size	4000×2000 mm
	Longitudinal stroke of the table (X).	4000 mm
	Table movement speed	0.1~10m/min
	T-slot width	22 mm
	Number of T-slots	13
	The workbench bears load	15t
Drill power heads	Number of drilling power heads	1
	Main motor power	22KW
	Spindle torque	280Nm (350Nm maximum).
	Spindle end taper	BT50
	Spindle speed	30-3000rpm
	Drilling diameter	F6-F 40
	Tapping diameter	M16
	Distance from spindle end to table	700-1700mm
	Maximum distance of the milling head ram up and down	1000 mm
	Milling head vertical movement speed (Z).	0.1~5m/min
	Maximum left and right travel distance of milling head ram	2500 mm
	The horizontal movement speed of the milling head (Y).	0.1~10m/min
	Iron filings cleaning device	Equipped with high-pressure blowers
precision	Positioning accuracy (X, Y, Z).	±0.05mm/m
	Repeatability (X, Y, Z).	±0.02mm
Chip removal	form	Twister + chain plate
	quantity	1 set
Cooling system		Inside + outside cold
Tool changer	capacity	24 knives
	Maximum tool weight	15KG
	Maximum tool length (including shank).	400mm

Fourth, the working environment of the machine tool
1) Height: ≥8.5M
2) Plant humidity: relative humidity≤ 85%.
3) Ambient temperature: 5~45°C
4) Power supply: power supply (three-phase): AC 380V±10%.
Power frequency: 50Hz±1 Hz
Total electrical capacity ≥ 100 KVA Compressed air: ≥0.6Mpa 5. List of main purchased parts of machine tools

name	specification	manufacturer
CNC control system		Japan FANUC
Spindle motor (AC servo).		Same as CNC control system
Servo unit		Same as CNC control system
Spindle group		Taiwan Kenji
X/Y/Z axis ball screw		Taiwan HIWIN/Nan Craft
X/Y linear roller guides		Taiwan HIWIN/Nan Craft
Ball screw bearings		Japan NSK
Lubrication system		Bechil
Chip conveyor		Cangzhou
Paper bag filter		Shandong/Hebei
Main electrical components such as buttons and indicators		import

Note: If the supplier of the purchased parts fails to deliver in time within the delivery period, the purchased parts can be replaced by the same brand!
6. Random documents
1. 1 copy of product inspection certificate
2. Chinese 1 copy of instruction manual (mechanical, hydraulic, electrical).
3. 1 copy of the basic diagram
4. CNC system programming manual l copy
5. 1 copy of CNC system installation manual
6. CNC system operation manual l copy
7. 1 copy of CNC system error troubleshooting manual
8. AC servo motor drive instruction manual 1 copy
9. Packing list 1 copy
