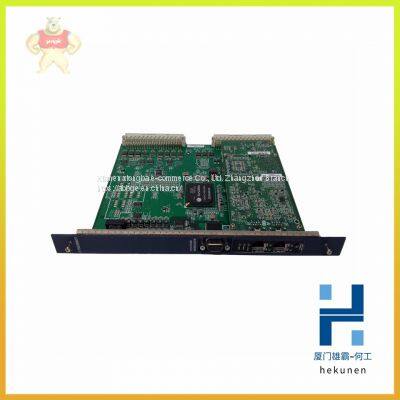

IC698ETM001 GE RX7i independent Ethernet interface module

Product Details

Product Description

Product Description
IC698ETM001 GE RX7i independent Ethernet interface module
IC698ETM001 GE RX7i independent Ethernet interface module
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
For fault reporting when an analog expander is used in a Series 90-70
Expansion Rack, a special case exists when the ALG230 base module
is in slot 2 and an expander module is present in slot 9. In this case, if
any expander module loses communication with the base module, then
the fault reports for all 16 channels for that expander display the slot
number as 0. The circuit number will be a value from 9 to 120, as shown
in the following table. The I/O reference address for each channel is
displayed as blank.
SLOT EXPANDER CIRCUIT NUMBERS
3 1 9-24
4 2 25-40
5 3 41-56
6 4 57-72
7 5 73-88
8 6 89-104
9 7 105-120
For fault reporting when an analog expander is used in a PACSystems
RX7i rack, a special case exists when the base is in slot 4 and an
expander is present in slot 11. In this case, the slot number for a faulty
expander is always displayed as slot 2, and the circuit number will
display according to the slot used for the expander, as shown in the
following table. The I/O reference address for each channel is displayed
as blank.
SLOT CIRCUIT NUMBERS
6 25-40
7 41-56
8 57-72
9 73-88
11 105-120
