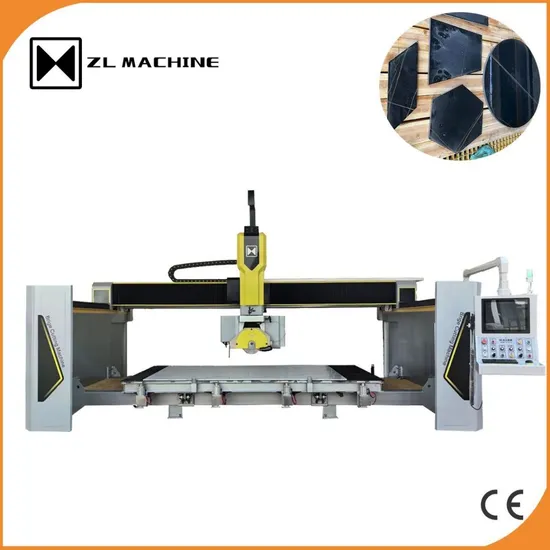

Industrial 5 Axis CNC Bridge Saw for Countertop Vanity Cutting

Product Description

Product Parameters

Model	ZLBS-500CNC/5+1A	Unit
Worktable	Plastic worktable be faced with rubber L3500*W2000	mm
Max.Cutting	L3500*W2000*T120	mm
Max.Chamfer	L3500*W2000*T80	mm
Cylinders	5	Group
X.Y. Z-axis Transmission	X-axis adopts Taiwan #30 Linear Guide Rail + helical rack and gear + planetary reducer. Y-axis adopts Taiwan #30 Linear Guide Rail + helical rack and gear. Z-axis adopts Taiwan #30 Linear Guide Rail+ Ball screw+ planetary reducer.
C-axis Head rotate	Head rotate 0°-360°, "ZHONGDA LEADER" Robot Reducer
A-axis	Head tilt 0°-90°, "ZHONGDA LEADER" Robot Reducer
Camera brand	Hikvison
Blade Diameter	350-500mm	mm
Control Center	Quality Industry computer + RTCP CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor
Main Motor	Self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Router power	5.5	kw
Router Max. RPM	24000	RPM
Total power	35	kw
Suction cup lifting weight	200	kg
Dimensions	L5750*W4150*H3450	mm
Water consumption	2	m³/h
Total weight	5	t
Main part delivered size	5750x2200x2600	mm
Shipment	Main part delivered as whole(HQ container)

Option: (System) 1. "Cut Cam"CNC System 2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Product Description
For processing Marble, Granite, Porcelain, and Quartz Stone Countertops, we provide 5 Axis CNC Bridge Saw .
It is a precise, effective, and user-friendly machine. The operator begins processing after taking a picture of the plate and adding the drawing layout to the image.Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate processing steps according to the Drawing. If the blade-cutting path conflicts, the suction cup will help to move slabs automatically. For basin, Kitchen Sink, Countertop, and inner angles, the milling cutter can do excellent work with 24000rpm Electric Spindle. Therefore, the machine is used to help install countertops without any dust.
We also provide OEM/ODM production machine service; if you require anything, feel free to contact us.
Functions
* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals...
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
*Vein matching: match vein and seam of your slabs with ease.

Product Features
1. Electric spindle with 24000rpm
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Router Power:
(ZLBS-500CNC/5+1A)5.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
5. With a Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
6. Suction Cup is equipped
The machine has Suction Cup to move slabs automatically.If the blade-cutting path conflicts, the suction cup can help.
7. Big Cutting Range

(ZLBS-500CNC/5+1A),Max.Cutting: L3500*W2000*T120


8. Touch-Screen Industrial Computer
This Machine has an industrial computer with touch-screen.

9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
Application Pictures
Application Fileds:
* Residential & Commercial Interiors
* Decorative wall panels
* Countertops/ Vanity Top /Kitchen Sink/ Bathrooms
* Worktops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funeral art
* Street furniture
* Ventilated facades


Packaging & Shipping
This model can be loaded into a 40' HIGH-CUBE Container.
