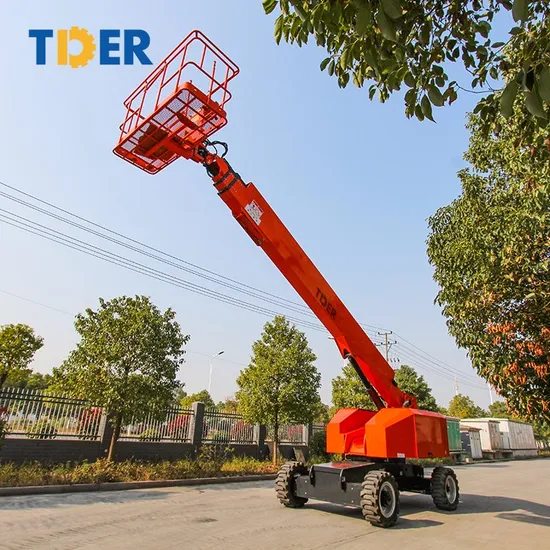

2024 Tder 20m 24m 26m Picker Hydraulic Man Articulating Telescopic Boom Lift

Product Description

Product Parameters

Model		ZTZD2224	ZTZD2628	ZTZD2830
Measurements
Working height maximum	m	24.1	28	30
Platform height maximum	m	22.1	26	28
Working radius maximum	m	18	22	22
(LxW) Platform dimensions	m		2.44x0.91
Length (stowed)	m	10.97	11.55	13.5
Width (stowed)	m	2.49	2.5	2.5
Height (stowed)	m	2.75	2.83	2.83
Wheelbase	m	3	3	3
Ground clearance (center)	m	0.43	0.43	0.43
Productivity
Lift capacity (non-restricted )	kg	230
Lift ca pacity (restricted)	kg	480
Platform occupancy maximum		2
Platform rotation		±80°
Vertical jib rotation		140°	\	140°
Turntable tailswing	m	1.32	1.4	1.4
Drive speed (stowed)	km/h	4.4	4.4	4.4
Drive speed (raised)	km/h	1.1	1.1	1.1
Gradeability		40%
Working slope maximum		3°/3°
Turning radius (inside)	m	3	3.59	3.59
Turning radius (outside)	m	5.2	5.59	5.59
Drive & steer mode		4x4x2
Tire type		36x14-20	385/65-22.5

please contact us if you need more parameters

Detailed Photos
1.Large load, strong power, easy maintenance, high chassis, great energy saving, stable control, easy transport.
2.Family modular design, the whole series R&D at the same platform , 90% of the main components common, more than 95% of the structural parts common, spare parts storage cost is lower, more efficient maintenance.
3.The whole parts moving down design, the center of gravity moves down, the stability of the whole machine is better.
4.All parts are located on both sides of the chassis for convenient maintenance.
5.Equipped with the integrated four-wheel drive system of axle, which makes off-road performance stronger.
6.Can transport by containers.
Packaging & Shipping
All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing forklifts.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided. Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback

Why Choose Us
FAQ
1. Why choose us?
As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift
trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with
the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver
immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
