Continuous Metal Casting Line Gravity Casting Production Line

Product Description

Product Description
Automatic robot pouring metal products gravity casting production line is turntable multi-statios production line,using robot to instead labours for casting( just need 1-2 workers for our gravity casting line), Siemens PLC programming, robot online tracking to pouring, can achieve automatic release of aluminum skin, automatic opening and closing mold frame. It is application the mass production of aluminum, copper, brass products, high output, high efficience, safe ,save workers, it is really solve foundry company labour and high dangerous working environment problems . Turntable line size from diameter 6m-10m, can be customized! it is with 14-16 sets gravity casting machine . Continuous robot pouring production line, can be 24 hours working .

Robotic Pouring gravity casting automation production line layout:

Detailed Photos

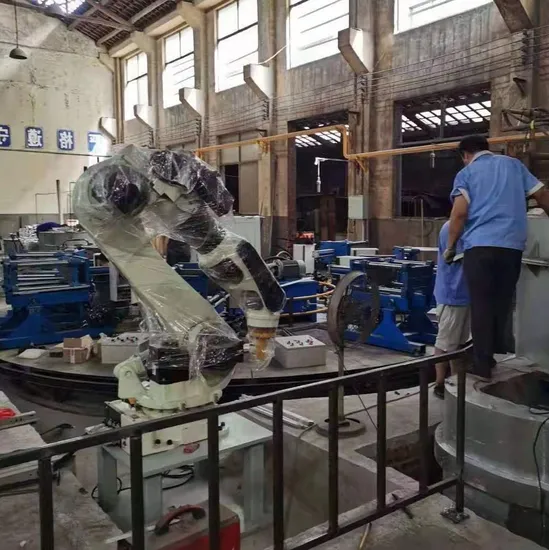

Below has our gravity casting production line real photos which we made for our customers:

Product Parameters
We have two types gravity casting line to choose :
1. Robotic gravity casting production line ( such as above photos)
Characteristics:

. 14-16 sets gravity casting machines
. Turntable diameter 6-12m(Can be customized)
. One robot pouring 14-16 sets gravity casting machine.
. Every 5-8minutes pouring one circle(can according to products cooling time to set ),
. One robot can pouring different weight products, automatic caculate .
. Just need 1 -2 workers is enough for one casting production line
. Can come true robot pick up, according to customers' need to make( come true full automation, no need work to pick up goods ) .
We have our own robot pouring copyrights software system, which we have gotten the patent and software writing Certification.

Turntable Diameter	Gravity casting machine Qty	Hydraulic Power Station	Robot Qty	Worker Qty	Speed/cycle (Minute)	Control Sytem
6.8M	14 units	11kw	1	1-2	5min	Siemens PLC
8M	14 units	11kw	1	1-2	5min	Siemens PLC
9M	14 units	11kw	1	1-2	5-8min	Siemens PLC
10M	14-16units	11kw	1	1-2	5-8min	Siemens PLC
11M	16units	22KW	2	1-2	3-5min	Siemens PLC

2.Robotic Pouring Gravity Casting Unit
Characteristics:
It have 4 or 6 gravity casting machines for one pouring unit , one robot pouring, can pouring product with sand core,We have our own robot pouring copyrights software system, which we have gotten the patent and software writing Certification.
Below photos are robot pouring gravity casting unit :
Our Advantages
1. Save power and worker for foundry company
2. High efficient casting
3. It is continous casting (can be 24 hours)
4. Casting quality is stable.
5. Safe in the high temperature enviroment
6. Our technology is mature, and have success installed more than 20 sets gravity casting production lines.
7. Our own technology and patent
Company Profile
Company introduction:
We are a machine and automatic production line manufacturer in China. We have more than 7 years experience.

Our products are mainly for metal and foam product' equipment . Such as aluminum or brass gravity casting
production line ,aluminum or brass gravity casting unit, PU foam products production line , gravity casting
machine,high pressure PU foam machine ...., all our automatic production line with robot pouring , SIEMENS
PLC programming.We gotten more than 30 patents and software copyrights , high and new tech enterprises,

we have 4 experienced engineers,can solve your technology questions soon. If you have our products need ,
contact with us freely.
Certifications

Patents and other Certifications:
Our company characteristics
1. all products accept customized, different specifications price different
2. according to customer´s actual needs and the company ´s characteristics to provide appropriate programme
3. product realization fully automated combined with robot operation , save human cost and greatly improve the production efficiency
4. products long-term tracking service
5.Delivery time: 35-65 working days after received customer´s 50% down payment!
6. Warranty period: one year , Life Time Guarrantee
Packaging & Shipping

Payment term :
50% deposite by T/T, 45% paid before delivery , 5% paid after install the equipment in customer's factory.
Delivery time :
90days for production line, 35days for single machine( such as gravity casting machine,PU foam machine)
Installation :
Once the equipment reach customer's factory, we will arrange the workers to customer's company to install,test ,training .
Our Services
1)After-sale Service:
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 120 per day each person will be charged additionally.
2)Lifetime maintenance free of charge.
3)Free training course at our plant or customer's plant.
4)24 hours on line service each day; free technical support.
5)Machine has been adjusted and test before delivery.
6)Free to design the Layout of customers' plant by our technician team.
FAQ
1.Q:Are you manufacturer ?
A:Yes,We are manufacturer

2.Q: Which software do you use?
A: Dear sir,we usually use the CAD software

3.Q: Which way do you repair your machine
A:Our engineers is avilable to repair oversea or by video guid if easy
4.Q:Where can I find your prodution line vidio?
A :Dear sir, we can send you directly by email or by whatsapp/wechat

5.Q: Where is your company?
A: It is in Wuxi City, near to Shanghai, just need half hour by high-railway.

6. Q: Does your city have airport?
A: Yes, we have, it is SUNAN SHUO FANG AIRPORT.
