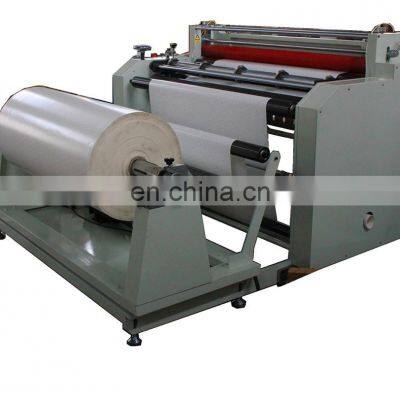

Film and Paper Roll to Sheet Cutting Machine with Slitting Function

Product Description

Product Description
Film and Paper Roll to Sheet Cutting Machine with Slitting Function
Functional Characteristics:
1.Magnetic powder controlled the unwinding tension.
2.Rectification system to make the material in line.
3.DELTA servo motor pull the material,high precision.
4.MITSUBISHI PLC with touch screen to set any length,quantity,speed.
5.3 inch inflatable shaft for unwinding.
6.20mm thickness steel wall make machine run stable.
7.Pulling roller coat thick PU rubber and won't scratch the material.
8.Polished and anodized aluminum guiding roller,very smooth and never harm the material.
9.SKD11 cutting blade can use very long time and cut the sheet with perfect edge at cutting part.
10.Standard 8 rotary slitting blade.
Purpose:
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.
Technical Data:

Model	DP-1400
Max Feeding Width ( mm )	1400
Max unwind roll diameter(mm )	800
Slitting width(mm )	25-1400
Unwind shaft diameter	3 inch
Cut 100mm speed ( times/minute )	80
Total Power	5kw
PLC	MITSUBISHI
Servo Motor Servo Driver	DELTA
Precision ( mm )	±0.10
Voltage	220V 50HZ

Electrical listing:

Touch Screen	KUNLUNTONGTAI	Made in China
Programmable Controller	MITSUBISHI	Made in Japan
Servo Driver	Delta	Made in Taiwan
Servo Motor	Delta	Made in Taiwan
Motor of cutting knife	SHENLI	Made in China
AC Contactor	CHNT	Made in China
Solid State Relay 20A	GOLD ELECTRICAL CONTROL	Made in China

Pictures:
