Diamond Wire Saw Stone Wire Saw for Concrete Cutting
Basic Info.
Model NO.
YG-A90
Power
22kw
Cutting Thickness (Max)
120
Weight
205kg
Brand Name
Yg
Voltage
220V or 380-460V
Dimension(L*W*H)
500mm*520mm*1100mm
Key Selling Points
Easy to Operate
Applicable IndustriesTbuilding Material
Granite Tombstone Stone Edge Polishing
Transport Package
Wooden Case
Origin
Henan
HS Code
820299100
Production Capacity
10000
Packaging & Delivery
Package Size
50.00cm * 52.00cm * 11.00cm
Package Gross Weight
205.000kg
Product Description

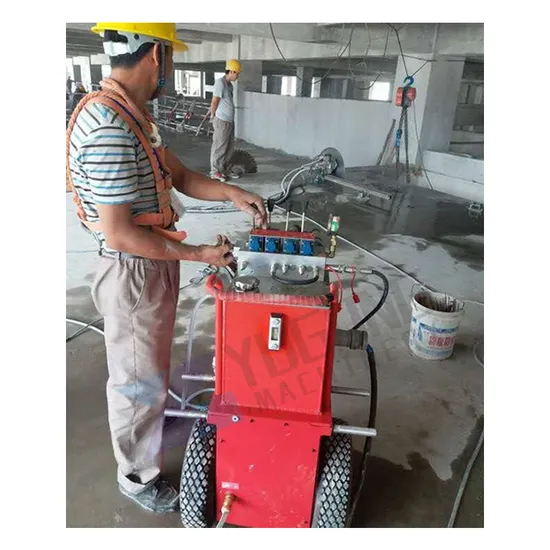

Product DescriptionHydraulic Wire Saw Machine Hydraulic Wire Saw Machine is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks. Product Features: 1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations. 2. It's made of hard materials. The wedges are running stability. Long surviving life. 3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation. 4. High Efficiency, and it's easy and comfortable to operate and maintain. Detailed Photos
Product Parameters
| Hydraulic Pump | YG-25 | Motor Power | 25kw |
| Voltage | 220V/380V, 50Hz | Motor Type | HM-80, 2 Cylinders |
| Rotation | 1300r/min | Working Pressure | 15-20Mpa |
| Weight | 170kg | Size | 720*650*1050mm |
| Frame & Wheels | Aluminum | Wheels | 10 |
| Weight | 75kg | Size | 90*90*1700mm |
| Diamond Wire Saw | Diamond Wire | Specification | φ11.5mm 40beads/m |
| Cutting speed | 3~5m2/h | Wire life | 2~3m2/m |
