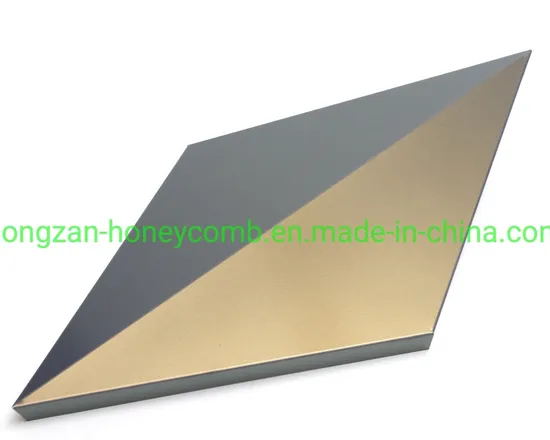

Aluminum Cladding Honeycomb Composite Sandwich Wall Panel for Facades

Product Description

Curtain Wall With Aluminum Composite Honeycomb Panel Our advantages / Why us ?
A, Help to Save your money / budget by Manufacturing aluminum honeycomb core, honeycomb panel, solid aluminum sheet,stone honeycomb panel, porcelain honeycomb panel inhouse, have our own export right to do all deals, no need any trader in between;
B, You will get the full solution of panel & Fixing system, shop drawings with our experienced engineers & production team because we focus on various honeycomb panels engineering & production since 1994;
C, Save a lot transportation fee, labor cost, job site work hours of installation as the honeycomb panel is 3 times lighter than the traditional solid panel;
D, Ultra-lightweight, High Rigid, and fire-rated make your buildings reduce a lot of weight, increase the durable and safe;
E, We supply One Stop service, to help you save a lot of your time and money.

Applications / Apply to :
a). Building exterior curtain walls; internal curtain walls; canopy;
b). Marine partition, ceiling,deck, furniture, ship hull decoration;
c). Toilet partition;
d). Decoration and renovation additions for old buildings;
e). Decoration of interior walls, partition, ceilings, bathrooms, kitchens and balconies;
f). Shop door decorations;
g). Advertisement board display platforms and signboards;
h). Wallboards and ceilings for tunnels;
i). Industrial materials, materials for truck body, vehicles and boats.
j). Cleanroom partition, ceiling and wall cladding.
Product Parameters
What is Aluminum Honeycomb Panel ?
Aluminum honeycomb panel are mainly used for the decoration of ship and building.
1), made of high-quality imported raw materials, and processed with high precision.
2), Its surface employs fluorocarbon lacquer( PVDF, PE) pre-roll coating of which can keep the color unchanged for 15-20 years.
3), Adopted and bi-component modified epoxy adhesive and has used fully automatic manufacturing facilities of honeycomb panels to compound product under pressurized high temperature through completely-closed and dust-free operation, which make the honeycomb panels sticker, more bending resistant, straighter, and thus steadier and more reliable in quality.
4), All kinds of alloyed honeycomb panel, such as single curved panels, double curved panels, folded panels and trapezoidal panels, can be fabricated according to the requirements of architectural design.
5), The alloyed panels with non-planar surfaces, such as circular arc, L type and U type, are produced by one-step forming with dies. It is a kind of organic and environmentally protective decorating material with high quality, light, high strength and magnificent appearance.
HZ Honeycomb aluminum panel is one of the best environmental composite materials with perfect strength, super flatness and excellent sound & heat insulation but with ultra-light weight and easy installing. The panels can be manufactured based on your specifications for a various applications.
Structure of Aluminum Honeycomb Panel:
Product Description
Main features:
A. Ultra-Light weight, high rigidity, steady, structure and high wind-resistance performance.Curtain wall aluminum honeycomb panels have been extensively applied to external wall decoration of high-rises building.Honeycomb panels of the same rigidity have a weight that is only 1/5 of aluminum panels and 1/10 iron panels, whose total thickness being 15mm, panels 1.0mm thick and bottom panel 0.8mm thick have a weight of only 6kgs per square meter. The interconnected honeycomb cores are like numerous I bar with interface layers distributed within the whole panel, thus resisting shearing and bending and large pressure. Its wind-resistance performance has greatly exceeded that of aluminum composite panel and aluminum solid panel, so that even large- sized honeycomb panels can reach extremely high straightness, aluminum honeycomb panels can reach the highest highest intensity and bending resistance with the lightest weight, which is an incomparable compared to other materials, thus making it currently the preferred light weight material in the building industry.
B. Excellent performance in sound insulation, heat insulation, reproofing and quake proof. Since the honeycomb cores in aluminum honeycomb panels are divided into many enclosed cells, which stops air flows and blocks heat and sound waves with 20-30DB, noise reduction for sources from 100HZ to 3200HZ and a heat conduction coefficient of 0.104-0.130W/M.k, Aluminum honeycomb panels is an ideal energy-saving material with an energy absorption capability of 150~3500KJ/M. For example, when it is raining, rains dropping on the aluminum solid panels or aluminum composite panels will make a loud noise, but if replaced them with honeycomb panels, no such problem will happen.
C. Straight surface, colors variety, super smooth. Aluminum honeycomb panel has high flatness, and has the advantages of easy deformation, slab roller coating aluminum with fluorocarbon. PVDF coating aluminum roll the most important point is that with a continuous roller coating technology, the aluminum coating is completed once the product stream without color coating roughness good, reliable, and can long remain outside the building colorful wall. After the sun and rain or long-term industrial air pollution, it is clear roller board than spraying clean bright and has good adhesion and weather resistance.
D. Fine decoration effect, easy and rapid installation. The bottom panel of honeycomb panels can adopt different materials according to different requirements, such as aluminum panels, corrosion resistant panels, galvanizted steel plate,colored steel panels and natural stones. The curtain wall aluminum honeycomb panels are processed in factory according to sizes designed in situ. The surroundings of the panels are bent and then formed by hybrid forming. The honeycomb panels can be made into flat panels, curved panel,semi-arc panel, columns, panels of L type, U type and through the full factory run with positive quality and easy installation.

Technical Data Of HONGZAN Honeycomb Panels:
Testing sample thickness: 20mm / 25mm ( 1.0+1.0) :
Thickness	20mm	25mm
Front aluminium panel	1.00mm
Back aluminium panel	1.00mm
Weight (kg/m2)	7.4	7.8
Mechanical Property of composite panel and panel
Inertia Moment I (cm4/m)	19.85	31.67
Section Modulus W (cm3/m)	19	24
Rigidity of Composite panel E.I (KN cm2/m)	139000	2217000
Aluminum profile panel	AA 5754A(ALMg3)
Modulus of Elasticity (N/mm2)	70000
Tensile Strength of facing panel (N/mm2)	Rm ≥ 220
0.2% Yield Stress(N/mm2)	Rp0.2 ≥ 130
Extensibility (EN485-2:1194)	A50 ≥ 8
Aluminum linear thermal expansion	2.4mm/m when the temperature difference is 100ºC
Surface decoration layer	PVDF Spray Baking finish
Glossiness (original Data)	30-40%
Hardness of pencil	HB-F
Core of Honeycomb
Size of honeycomb	1/4''(6.3mm)
Density	About 80kg/m3
Compression strength (MILL-STD-401)	4N/mm2
Fuction Of Acoustics
Data of sound absorption As	0.05
Factor of sound insulation According to ISO717-RW	23	25
Fuction Of Heating
Data of Heat Conduction λ*(w/m2k)	2.25	2.7
Data of Thermal Insulation R(1/m) (m2k/w)	0.0089	0.0093
Data of Heat Transmission U(k) (w/m2k)	5.59	5.575

Regular Specifcation of Aluminum honeycomb panel:

Material	Aluminum Alloy (3003/5052, etc.)
Regular Size (W*L*T)	1,220*2,440/3,000*6 mm
Max. Size(W*L*T)	2,000*10,000*200 mm
Regular Thickness	10/12/15/20/25 mm
Available Thickness	5-300 mm
Regular Surface Treatment	PVDF,PE,Powder Coating, Anodized, etc.
Perforation	Yes (customized)
Applications	Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc.
Customerization(MTM)	Yes (color, surface texture, size, shape, pattern, etc.)
OEM	Available
Suggestion:
1. For interior wall: Surface - PE coating; Thick range - from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm)
2. For exterior wall: Surface - PVDF coating; Common thick: 15mm, 18mm, 25mm,30mm (top plate: from 1.0mm to 2.0mm; bottom plate: from 0.7mm to 1.0mm)

Production Capacity:

Aluminum honeycomb panels	50000SQM per month
Aluminum honeycomb core &corrugated core	500000SQM per month
Stone (marble,granite) & Ceramic honeycomb panel	10000SQM per month
FRP honeycomb panel	50000SQM per month
Rock wool Sandwich panel	30000SQM per month
Solid aluminum sheet	100000SQM per month

Installation Instructions
Hongzan Standard Installing System for Aluminum Honeycomb Panel (customized installation systems are available):
Type A: standard seaming installing method of outdoor for aluminum honeycomb panel
Type B: standard seamless installing method of outdoor for aluminum honeycomb panel
Detailed Photos
Our Factory Show & Packing Detail
Projects study:
Certifications
1), ISO 9001:2008;
2), IMO MED; A class fire rate by Lloyd's ( Marine Association) ;
3), BS 476 ,475 by TUV PSD Singapore;
4), EN13501-1 by ITS;
5), ASTM by ITS;
6), CE EN Certificates.
FAQ

Q & A for concerning: 1. Do you provide free samples ?
yes, we do supply sample for free. 2. Do you offer best price? We are manufacturer with our own export right, we always provide our best price with high quality products. 3. How can you ansure your quality is reliable? We have our QA system and pass ISO 9001:2008; , besides, our products passed BS, IMO, CE EN, ASTM tests. We can supply reports, certificates, You are also welcome to send QC team to do the inspection. 4. How about your factory's productivity ability? Our production capacity is 50000 square meter per month.
5. Can we have video factory tour and live show of your factory during this pandemic time ? Dear, of course! You are welcome to set up a life video visitng of our factory !
