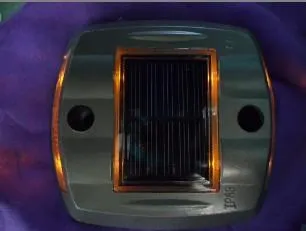

Solar Road Stud with 4PCS LED Lights

Product Description

Main Introduction of Solar Road Stud with 4PCS LED Light
Solar road studs are flashing solar cell powered LED maintenance-free lighting devices used in road construction to delineate road edges and centrelines. Embedded in the road surface, they are an electronic improvement on the traditional cat's eyes in that they may give drivers more than a thirty-second reaction window compared with about 3 seconds for conventional reflective devices. The intense brightness of the LEDs makes them easily visible at distances of about 900 m under favourable conditions.

Features of hwawin Solar Road Stud

1) Suitable for edge line of road and pavement
2) Can use over 180hrs in the foggy or rainy day after fully charged.
3) Can work more than 3 years normally
4) Energy saving and environmental protection
5) Fix firmly the product by epoxy resin glue or screws
6) It can load-bearing 20 tons
7) Waterproof and unbreakable: Solar panel, electronics and optics are fitted inside

Applications of Solar Road Stud

Wet Road

Conventional reflective markers lose their visibility when the roads are wet. The solar road stud's active illumination remains brightly visible, unaffected by wet conditions.
Foggy Conditions
High intensity LED spotlight penetrate fog to help the driver to negotiate curves.

Dark Rural Roads

Illumination from the solar road stud can eliminate the need for street lighting while maintaining safe driving component.

Mountain Roads
Help to show approaching sharp turns and blind curves at night time. The studs can also be mounted on guard railing to provide even greater visibility on twisted mountain roads.

Square, Villa, Garden, Street, Pathway, Landscape, etc are all available.

Product Specification

Product Type		Solar road stud (HW-RS01)
Product size		140*130*28mm
Product weight		0.78kg
Power	Solar cell	poly-crystalline silicon / single-crystalline silicon (3v,75mA)
	Storage battery	Ni-MH (1200mAH) / Super Capacitor (50F)
LED	Light source	super luminosity LED
	LED quantity	4 pcs
	Luminosity colors	red, green, blue, white, yellow (for any choice)
	Luminous mode	varying type /Constant Type
Work time		108 hours above for Varying Type; and more than 24 hours for constant type(standard luminosity intensity)
Work temperature		-25°C to +75°C.
Material of light		Aluminum alloy and Polycarbonate
Waterproof grade		IP>67
Lifespan		>5 years (Ni-MH) or >15 year ( Super Capacitor)
View distance		over 800m
Guarantee period		14 months
Packing	Carton size	20.5*28.3*30cm
	QTY	40PCS/Carton
	N.W.	15.6 KGS/Carton
	G.W.	16.6 KGS/Carton

How to install Solar Road Stud

1.Mix the glue

2.Positioning :Road stud install place must to be flat ,dry ,clean ,seamless.

3.Stick with glue:using the proper quantity glue, sticked on the ground firm ,after installation, please turn the road stud left and right once again to ensure the road studs paste on the road uniform

4.Road closures:Must be 6 hours of road closures to ensure the glue curing time

Service:
1.Samples available any time, NO MOQ.
2.Reply your inquiry within 1hr in working time, with 12 hours in non-working time.
3.Customized Service, OEM and ODM acceptable.
4.Warranty: One year, New replacement or spare parts will be sent within the warranty period.shipping cost will be covered by us.
