Fancy Jacquard Saree Cloth Weaving Machine 2688 Hooks

Product Details

Product Description

Product Description

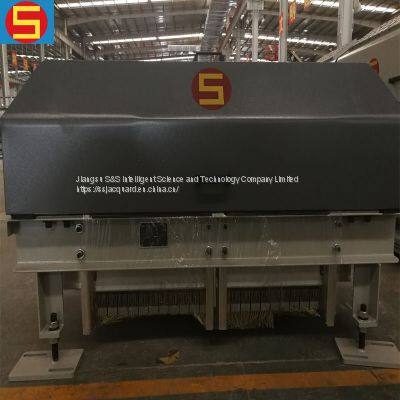

SA5-2688 electronic jacquard machines have high cost performance. SA5 series electronic jacquard looms are designed to work with low speed textile weaving machines. Based on mature technology, the mechanical transmission system is improved to enhance the ability of load, decrease the noise and get better reliability. The SA5-2688 digital jacquard weaving machines are popular used to weave saree and bath towels. This model of jacquard weaving machines are compatible with low speed rapier loom, air jet loom, water jet loom and shuttle loom.
Applicable to：
Rapier loom, air jet loom, water jet loom, shuttle loom with any reed width.
Weaving Products:
Saree, Scarf, Shawls, Stoles, Towels, Garment Fabric, Lining Fabric, Silk Fabric etc.
Hooks:2688
Shed Opening: 65-120mm
Max Speed: 350 rpm
Advantageous Features：
1 SA5 series jacquard, in straight shed opening ,without lifting rod and the bearing ,this structure is more compact.
2 Blades and its frame fixed within a single body,saved the blade guiding rail ,simplify the mechanism but with a better reliability.
