Heavy Duty CNC Automatic Feeding Aluminum Corner Connector Cutting Machine Window Door Making Equipment

Product Description

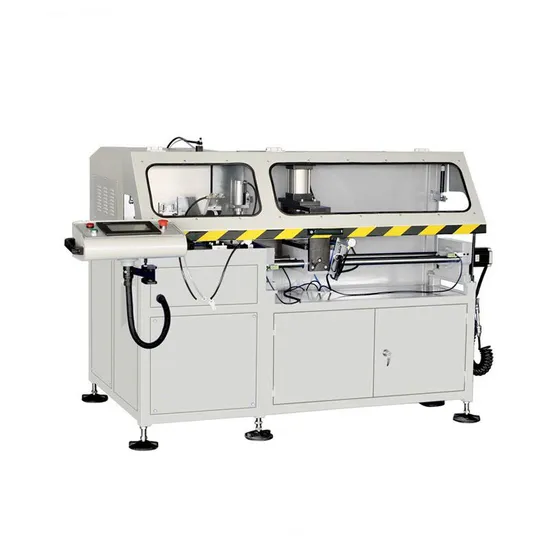

Product Description Corner Connector Automatic Heavy-duty Cutting Machine LJJAS-500
Equipment Avantages:
1. This machine is mainly used for corner connector of aluminum profile and plastic profile cutting. It can cut 6m corner connector continuously by one time clamping.
2. It has features of easy operation, reliable performance, advanced technique and convenient maintenance etc.
3. Used for corner connector of aluminum profile cutting.
4. Only one time clamping, can achieve 6 meters corner section bar continuous cutting.
5. It changes the length of corner connector automatically by inputting length in CNC control panel.
6. In order to prove an accurate processing and high efficiency, we use imported carbide saw blades.
7. Feeding motion use linear bearing with small movement resistance and high precision.
8. Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
9. Work clamping, cutting and uses the ball screw transmission, convenient operation, safety and reliability, high productivity.

Detailed Photos


Product Parameters

Technical Parameter
Input voltage	380V/50Hz(As Required)
Input power	3.0Kw
Air pressure	0.5~0.8Mpa
Air consumption	100L/min
Motor rotary speed	2800r/min
Auto feeding length	5-700mm
Cutting width*height	120*200mm
Overall dimension	1700*1400*1220mm

Packaging & Shipping
Packing Detail
For LCL(less container load) shipping, we will adopt the following packing method:
Inner package: stretch film.Outside package: standard export plywooden cases
For FCL(full container load) shipping ,all machines will be wrapped with stretch film and then fixed with steel iron in container .
Company Profile
Jinan Huashinuo CNC Machinery Co., Ltd is a modern enterprise specialized in technology development, machinery manufacture and product sales. Main products include aluminum win-door making machine , upvc win-door making machine and insulating glass production line and so on.
Our engineers have 15 years of experience in machine fabrication, which makes the precision and stability better than others. After machine production finished, the products will be tested in professional ways to make sure its performance.
If you are window fabricator, looking for new machines for business expansion,or you have interest to set up window production line.,or you have any questions about window machine, Huashinuo team is here, we are ready to support.you.


Our Customers
After Sales Service
1.Warranty time will be 12 months, lifetime maintenance.
2.Within 7 days from your local customs clearance: If any part of the machine has any problem, we will change it for free.
3. Exceed 7 days from your local customs clearance but within warranty period: If the machine parts have any problem, we can exchange the old machine parts for new one for free.
4. Exceed warranty period: If the machine parts have any problem, we can offer new machine parts with cost price but you pay all the shipping cost.

FAQ
Are you manufacturer?
Yes,we are a professional manufacturer which have more than 15 years experience in this industry.
What's the guarantee ?
1).Our guarantee for 12 months.
2).24 hour's technical support by email or phone
3).English manual and video tutorial
4).We will provide the consumable parts at agency price
5).free technical support.
What accessories do you offer?
1).We will provide standard accessories with the machine.
2).We will provide free accessories for change.
3).We will provide the consumable parts at an agency price.
How long is the delivery time ?
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
I want to buy machines for aluminum/upvc window door, what suggestion can you give?
1) How many square meters of window and door will be planned to produce in one day?
2) What's the section of your profile?
3) Which kind of window door will be produced ?
If I want whole production line for upvc windows, what machines do I need?
At least 7 machines, they are
1). Double / single head cutting machine
2). Welding machine
3). V cutting
4). Glazing bead machine
5). Lock hole machine
6). Water slot milling machine
7). Corner cleaning machine
If I want whole production line for aluminum window, what machines do I need?
At least 5 machines, they are
1). Double / single head cutting machine
2). End milling machine
3). Copy routing machine
4). Punching machine
5). Corner crimping machine
