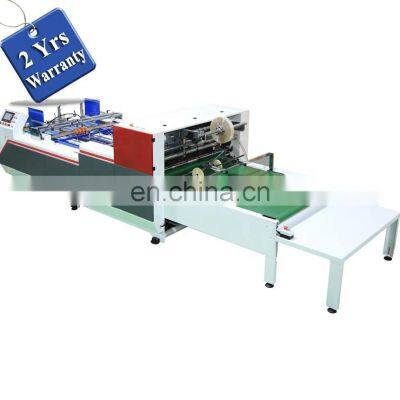

UTM1100B Servo Motor Driven Fast Speed Double Lane Line Automatic Carton Box Window Patching Machine

Product Description

Product Description
UTM1100B Double Lane Line Automatic Box Window Patching Machine for Carton
Videos
Video demonstration only for reference
Video 01: /watch?v=K2u7pUEwBTQ
Video 02: /watch?v=ZM9ORXM3d28
Product Description
DESCRIPTION:
The model UTM1100B/C window patching machine is widely used for gluing transparent films on the windows of various carton boxes such as tissue box, medicine box and shirt box, etc. The machine combines following five units: paper sheets feeding unit, positioning adjustment unit, gluing unit, film patching unit, delivery unit. Heavy duty steel structure equipped ensures the machine running in high stability and reliability.
Features
1, Rotary film cutting + Single group film applicator
2, Servo motor paper feeding
3, Servo motor film feeding
4, Paper receiving stepper with batch counting
5, Paper vacuum adsorption transport
6, Paper width W <400mm double channel mode
7, Tissue box film middle cut (optional)
Parameters:

Model	UTM-1100B (Single Channel)	UTM-1100C (Double Channels)
Max.Paper Size	W1100xL800mm	W450xL800mm
Mini.Paper Size	110x110mm
Paper gram above	Kraft Paper:150-1200gsm White Cardboard:230-1200gsm Corrugated Paper:≤3mm
Max.Film	W500xL430mm	W 150xL430mm
Mini.Film	W50xL50mm
Film Thickness	CPE/PE:0.1-0.3mm PVC:0.08-0.25mm APET/PET:0.06-0.2mm
Max.Film Unwinding Diameter	400mm
Paste error	±2mm
Maximum Speed	8000pcs/h	16000pcs/h
Servo Motor	Driving part:Paper feeding department 1 set film delivery department 1 set
Stepping Motor	Driving Parts: Automatic paper receiving 1 set
Machine Size	L550xW170x160cm
Power	380/415V 50/60Hz 7KW
Overall Weight	2500kg	2550kg

Detailed Images
Paper Feeding Section:
Adopt belt feeding paper, it is suitable for coated, reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.
Operating Interface:
All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button.
Paper Transmission Correcting Rail:
Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.
Vacuum Conveyor:
Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting.It runs steadily at high speed and has high precision.
Paper Stacking Section
Single stepper motor controls the operation of paper-collecting belt. Paper-folding distance can be adjusted wholly or segmentally and run at multi-speed.
Glue Applying Section:
Corrosion resistance of 304 stainless steel glue roller,it is simple and modeling arbitrarily to use EVA sponge to make glue model ,glue evenly,convenient thickness adjustment,aliggnment position local gluing saves glue loss,easy to clean.
Additional Parts Available to be Added:
1.Paper towel box film opening device can be installed to open or cut off the local film.
2. A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same.
