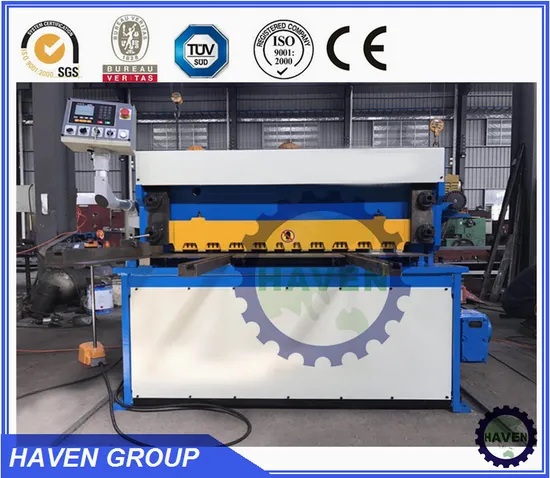

QH11D-3X1500 Mechanical High Precision Shearing Machine

Product Description

QH11D-3X1500 Mechanical High Precision Shearing Machine
Main functions:
1) Brake motor driving through a shaft-mounted speed reduction unit and controlled by a selector switch for single of continuous strokes provides quite instantenous engament;
Different from the traditional driving method of mechanical shear
2) it is one of the most advanced miniature mechanical shear, and enjoys good reputation both at home and abroad.
3) The low cutting angle and inclined shear direction reductes bowing and twist to a minimum.
Blade clearance is easily set by a manually operated quick set device.
4) It is an ideal truecut machining equipment of metal sheet and nonferrous metal sheet.
Main specification:

Model	QH11D-2.5x2500	QH11D- 3.5x1250		QH11D- 2.5x1300	QH11D-3.0x1500		QH11D-3.2x2500	QH11D-3.2x2000	QH11D-3.2x2200
Max cutting thickness	0.5-2.5	0.7-3.5		0.7-2.5	0.7-3.0		0.3-3.	0.6-3.2	0.6-3.2
Max cutting Width	2500	1250		1300	1500		2500	2000	2200
Cutting angle	1°	1.5°
Travel number of top post	47min-1
Per time travel no	10min-1
Height from worktable to ground	800mm
motor	5.5kw						7.5kw
Motor speed	1380rpm
Machine dimension length	3124mm		1860mm	1910mm		2060mm	3124mm	2624mm		3124mm
Width	2210mm
height	1180mm
Machine weight	2000kgs		1440kgs	1490kgs		1720kgs	2100kgs	1900kgs		2300kgs
