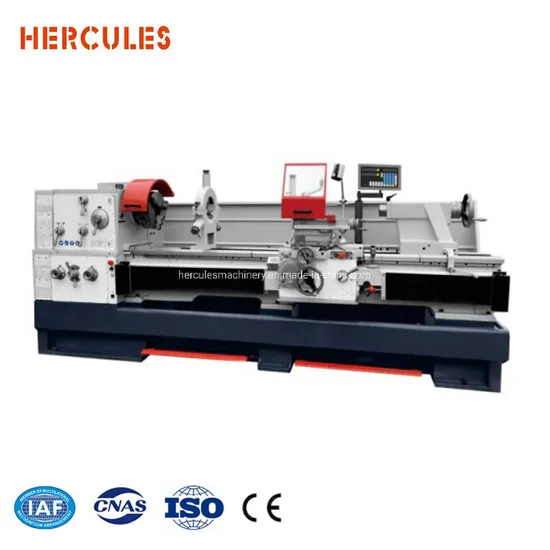

CP6266L Universal Torno paralelo Heavy Duty Metal Bench Turning Lathe machine
| US$12,500.00-13,750.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CP6266L
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Bed Type
Normal/Gap
Table Size
1000/1500/2000/3000
Transport Package
Pallet
Specification
2020*1120*1820
Trademark
Hercules
Origin
China
HS Code
8458190000
Production Capacity
8000 Sets/Year
Product Description
| Specification | Unit | CP6266L |
| Swing over bed | mm | 660 |
| Swing over cross slide | mm | 430 |
| Distance between centers | mm | 1000,1500,2000,3000 |
| Swing in gap | mm | 870 |
| Width of gap | mm | 240 |
| Width of bed | mm | 390 |
| Spindle nose | D8 | |
| Spindle bore diameter | mm | 105 |
| Morse taper of spindle center | 1:20 | |
| Spindle speed | rpm | 6-1120 (24 steps) |
| Max output torque of spindle | N.m | 1500 |
| Range of longitudinal feed | mm/rev | 0.063-6.43 (0.0025-0.25in/rev) |
| Range of cross feed | mm/rev | 0.027-2.73 (0.00106-0.107in/rev) |
| Lead screw pitch | 12mm(metric system)/2 t.p.i(inch system) | |
| Metric threads | mm | |
| Inch system threads | t.p.i | |
| Module threads | 0.5-112mm (42 kinds) | |
| Diameter pitch threads | 56-1/4DP (45 kinds) | |
| Cross slide travel | mm | 360 |
| Top slide travel | mm | 200 |
| Section specification of tool post | mm | 25×25 |
| Longitudinal rapid traveling speed | m/min | 4.5 (50Hz) / 5.4 (60Hz) |
| Transversal rapid traveling speed | m/min | 1.9 (50Hz) / 2.3 (60Hz) |
| Morse taper of tailstock center | M5 | |
| Max travel of tailstock quill | mm | 150 |
| Tailstock quill diameter | mm | 75 |
| Main motor | kw | 11 |
| Rapid travel motor | 250W/1360rpm | |
| Coolant pump motor | 90W/25L/min | |
| Hercules Machinery Equipment Ltd. | ||
Standard accessories:
1.Ø325mm 3-jaw chuck
2.Thread chasing dial
3. Chip guard for L≤2m lathe; Follow Chipe guard for L≥3m lathe
4.Footbrake
5.Oil gun
6.Live center 5#
7.Center 5#
8.Center sleeve
Optional accessories:
1.Ø630mm Face plate for 50 series; Ø800mm Face plate for 66,76 series
2.Ø400mm 4-jaw chuck
3.Ø20-140mm Small steady rest
4.Ø130-260mm Large steady rest
5.Ø20-80mm Follow rest
6.Ø250mm Drive plate
7.4-position stop for saddle
8.4-position stop for cross slide
9.Micro stop for saddle
10.Quick change tool post
11. Damping washer
12.Taper turning attachment(TTA)
13.Halogen work lamp
14.Digital readout(DRO)
15.CE standard compliance
16.Chuck cover
Pictures for reference only:
