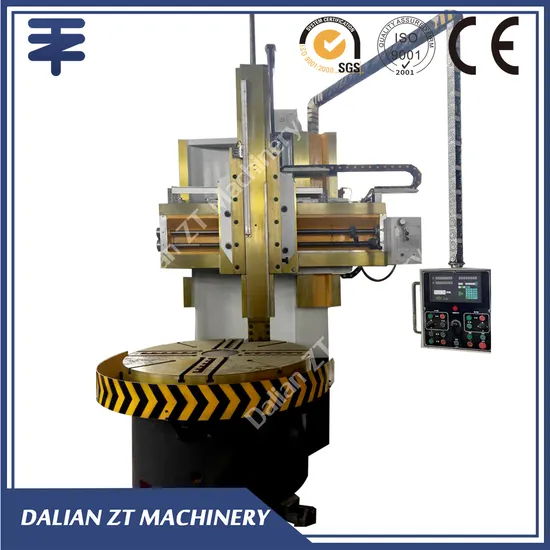

Single (Double) Column Vertical Lathe with Side Head DRO C5116 Turning Dia. 1600mm Lathe
| US$28,000.00-38,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
C5116D
Guide Rail
Horizontal Guide Rail
Tool Holder
2
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Turning Diameter
1250mm
Table Dia.
1000mm
Max. Workpiece Height
1000mm
Max. Workpiece Weight
3200kg
Tool Shank Section
30X40mm
Transport Package
Plywood Packing
Specification
Overall size: 2360X2270X2800mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84581900
Production Capacity
500 Sets/Year
Product Description
Workpiece: Valve, pump, auto parts; ring, flange, shell partsFunction: Turning, grooving, drilling, tapping, reaming
Main Technical Parameters:
| Specification | Model Unit | C5116 |
| Max turning diameter | mm | 1600 |
| Table diameter | mm | 1400 |
| Max height of workpiece | mm | 1200 |
| Max weight of the workpiece | t | 5 |
| Max torque of table | KN.m | |
| Speed range of Table (16steps) | r/min | 5-160 |
| Main motor power | KW | 22 |
| Machine dimension | mm | 2830x2670x3010 |
| Machine weight | t | 12 |
Standard Accessories:
| Name | Q'ty |
| Chuck jaw | 4 sets |
| Tool holder | 1 pc |
| Tool shank | 1 pc |
| Spanner for tool post | 1 pc |
| Spanner for chuck | 1 pc |
| Ring spanner 36 | 1 pc |
| Oil gun | 1 pc |
| Anchor bolt | 7 sets |
| Machine pad | 8 pcs |
PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
