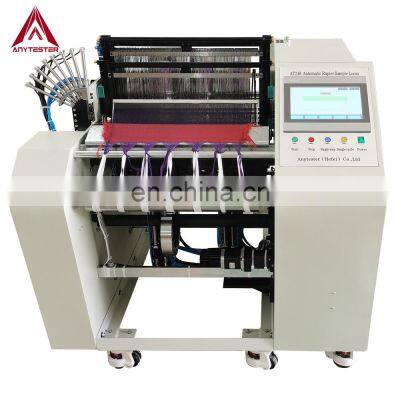

Automatic Yarn Rapier Sample Weaving Shuttle Loom With Touch Screen Control

Product Description

Product Description
Product DescriptionAT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.SpecificationsReed width12inches (16, 20, and 24inch, optional)Yarn linear density range5~500texWeft density30~45weft/min, selectableNo. of heald frame4~20Color selection8 color, automatic pneumatic controlLet-offActive electronic controlTake-upMotor controlSheddingDobby shedding, pneumatic controlBeating-upMotor control Air pressure0.45~0.8MpaAir consumptionMax. 200L/minPowerA220V 50Hz, single-phaseDetails & Features PLC control touch screen with 2G memory capacity to store designed patterns;  Designable and editable patterns and USB interface to share designed patters;  Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;  Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure; Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics; Heald frames up to 20pcs, easy to mount and dismount; Automatic pneumatic selection of weft yarns up to 8 colors;  Professional software for designing or editing patterns;Packing & DeliveryPackagingSize140(L) * 100(W) * 180 (D)Weight200 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products Contacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertifications
