Hzs180 Custom Concrete Mixing Plant Stabilised Soil Mixing Plant Source Manufacturer

Product Description

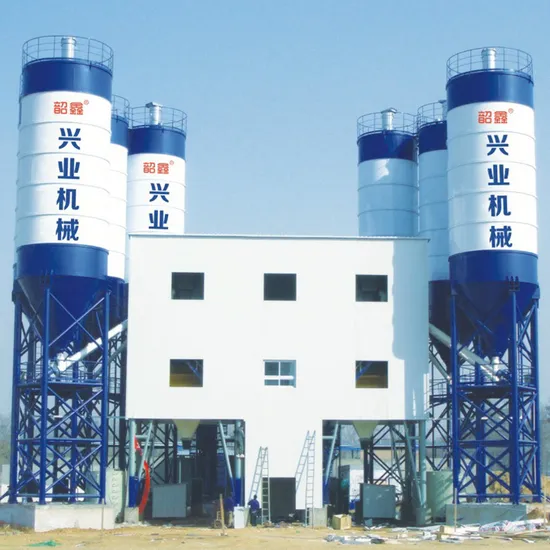

Construction Machinery HZS180 Fixed Concrete Mixing Plant Stationary Concrete Batching Plant
Product Description
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Detailed Photos

Ready mixed Concrete Batching Plants consists
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.

Additive scale

Water scale

Cement scale

Water inlet pipe for the water scale

Water inlet pipe for the mixer

Load sensor

Pneumatic control

Aggregate bins

Weighing bin

Screw conveyor

Belt conveyor

Vibrator

Air compressor

Control table

The modular design to make quickly installation and relocation; the fully automatic control system to make easily
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise
Product Parameters

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

Item No.

Theoretical Capacity

Model of Mixer

Mixing motor power

Cycle period

Volume of Mixer

Volume of Cement silo

Capacity of batching plant

Volume of aggregate bins

Number of Aggregate

Max aggregate dia.

Discharge height

Productivity of aggregate belt conveyor

Total power

HLS180

180 m3/h

JS3000 I / II

2*55kw

60s

3000L

4*200t

4800L

4*25m3

4

<=80mm

4.2 m

750 m3/h

268 kw

Max weighing value of aggregate	Max weighing value of cement scale	Max weighing value of coal ash scale	Max weighing value of water scale	Max weighing value of additive scale
5000kg	1500kg	800kg	700kg	50kg

Overall Size
type 64000*17000*12484 mm	L type 47000*21000*12484mm

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi. The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters. We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications


Our Advantages
FAQ

1. Are you a manufacturer, trading company or a third party?
We are a concrete mixing plant manufacturer 15 years meanufacture experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
