Tractor Mounted Finger Wheel Hay Rake

Tractor Mounted Finger Wheel Hay Rake

US$1,150.00 1 Piece (MOQ)

Basic Info.

Model NO.
9L-6.5
Transport Package
Standard Export
Specification
6500mm
Trademark
soleun
Origin
China
HS Code
8433400000

Product Description

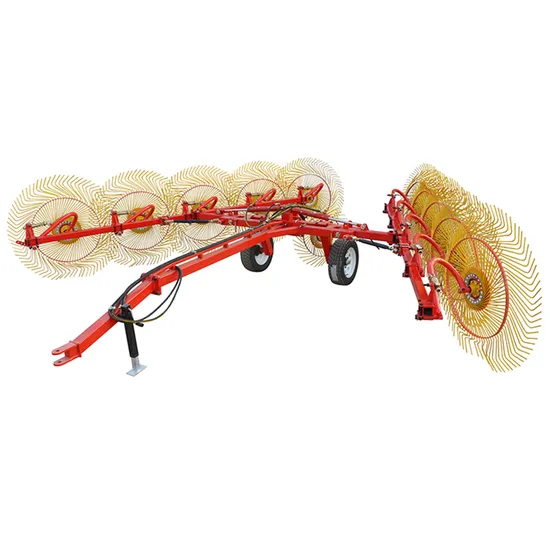

This series of wheel rakes are the professional haymakers' choice. They offer high-volume haymakers the dependable, adjustable high-speed raking they are used to gather up big quantity of hay quickly in all types of crop and field conditions.
Each rake wheel, suspended by an adjustable spring, uses an innovative compression spring and linkage pressure system. The rake wheel pressure can be finely adjusted to the crop and field conditions for the cleanest possible raking and added reliability as there are no chains or springs under tension that can work loose or fail. Specially curved rake-wheel arms provide more space for the hay to travel along the rake wheels without bunching to form a smooth, uniform windrow.
Model 9L 6.0-8 9L 6.5-10 9L 7.3-12 9L 6.5-10 H
Wheel Number 8 10 12 10
Raking width 6 6.5 7.3 6.5
Windrow width 1 1 1 1
Wheel Diameter (cm) 150 150 150 150
Dimension(mm) 6100*6300*1500 6600*6800*1500 7500*7600*1500 7500*7600*1500
Weight(kg) 860 980 1150 1650
Matched Power (Hp) 30-70 40-80 55-90 100-180
Matched Rate (ha/H) 2-2.6 2.3-3 2.6-3.3 3.3-4.6
Hydraulic Hitch jack Standard
Center kicker wheel Optional
