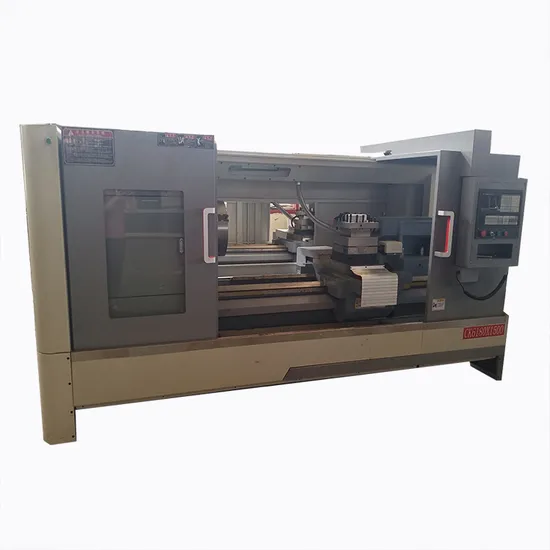

Good Quality New CNC Lathe Price with Fanuc Control Ck6140

Product Description

Product Overview
Product descriptions from the supplier
Four problems that 90% of buyers worry about: 1. Can I engrave my samples?
Our company supports making samples and carving your samples into shape.
2. Is the engraved sample accurate? The equipment shall be calibrated by the primary metering department to ensure the accuracy of the equipment.
3. Need to install and test, which takes a long time? 4. How long is the warranty? Is it from the manufacturer?
Before leaving the factory, special test, plug and use shall be done, which is convenient to use, with operation flow and video guidance. The whole machine is guaranteed for one year and maintained for life. It is sold directly by the manufacturer and has high cost performance.
Product Description

VMC1050 Vertical Machining Center.
The machining center is an automatic tool changer and tool magazine added on the basis of ordinary CNC machine tools, and has other auxiliary functions, so that after the workpiece is clamped once, it can continuously and automatically complete drilling,expanding, reaming, boring, tapping, milling and other processes in multiple planes or multiple angle positions, with highly centralized processes.
VMC is applicable to: precision and complex parts processing; Periodic repeated production parts processing; Multi station, multi process centralized parts processing; Parts processing with proper batch.
Main processing objects:
1. Box type parts
2. Complex surfaces
3. Special parts
4. Disk, sleeve and plate parts
Features of machining center
It can automatically change the spindle speed of the machine tool, the feed rate and the movement track of the tool relative to the workpiece. Some machining centers have double workbenches. While the workpiece on one worktable is being processed, the other workpiece can be loaded and unloaded on the worktable in the loading and unloading position, and then the processing (loading and unloading) position can be changed, thus saving the total processing time. It can significantly reduce the time for workpiece clamping, measuring and machine tool adjustment, reduce the time for workpiece turnover, handling and storage, and greatly improve productivity. For parts with complex machining shape, high precision requirements and frequent variety replacement, it is more economical.
Machining Center Spindle The spindle adopts vmc1600 Four-axis hard rail, the three-axis travel X * Y * Z is 1600 * 850 * 700, the spindle adopts BT40 spindle taper, with good rigidity, and the tool magazine adopts 24 manipulator tool magazines. The lead screw has high rigidity and precision.
Machining Center System The processing center has KND, GSK, Fanuc, Siemens and other systems to choose from, and customers can customize according to their needs. The large screen touch and button operation are convenient for operation and control.
Machining Center Spindle This VMC adopts a four axis design. The four axis machining center can realize multi surface machining by rotating, which improves the machining efficiency and reduces the number of clamping. In particular, the processing of cylindrical parts is more convenient. Moreover, it can reduce the repeated clamping of the workpiece, improve the overall processing accuracy of the workpiece, simplify the process and improve the production efficiency. Shorten production time.
PRODUCT SPECIFICATIONS

Item No.	VMC650	VMC850	VMC855	VMC1160	VMC1370	VMC1600
X axis Travel(mm)	650	800	800	1100	1300	1600
Y axis Travel(mm)	420	500	550	600	700	850
Z axis Travel(mm)	480	550	550	600	700	700
Distance from spindle axis to column guideway(mm)	480	500	590	650	750	880
Table Size(mm)	800x420	1050x500	1000x550	1200x600	1400x700	1800x800
Max. loading capacity(kg)	600	600	600	850	1200	2000
X.Y.Z axis Feed Speeds(mm/min)	8000	8000	8000	8000	8000	8000
Spindle Rotation Speeds(r.p.m)	8000 r.p.m(10000/12000/15000 r.p.m)
Spindle Taper	BT40	BT40	BT40	BT40	BT40	BT50
Spindle motor(kw)	5.5	7.5	11	15	18	18.5
Three-axis motor power(kw)	1.5	3	3	3	3	3
Overall dimensions(mm)	2500x2380x2576	2570x2518x2565	2760x2300x2600	3320x2805x3220	3500x2850x3200	4400x3400x3200

Packaging & Shipping
OUR SERVICES
01 PRE-SALES SERVICE:
We provide presales service in various forms, making investment budge, manufacturingplanning, so that customers can make a reasonable plan with less cost.
We will fist check customer's goods and goods size, then we will recommend suitablewrapping machine to 100% suitable.
We will recommend and offer machine according to customer's use and purchasebudget.
02 IN-SALE SERVICE:
We will supply each manufacturing step photo for customer checking on time.
We will prepare packing and shipment according to customer's needing in advance.
Testing the machine and making video for customer's checking.
03 AFTER-SALE SERVICE:
We will guarantee the machine quality for 2 years.
We provide free training and answer customer's question on technology in time.
Customer feedback

Company Profile
Henan Randro Machinery Equipment Co., Ltd. is an enterprise specializing in the production of CNC machine tools, lathes, machine tools, and rolling presses. Our products have passed the international ISO9001:2008 quality management system certification. We have established good relationships with customers from over 100 countries.
Main Products: The company operates various specifications of products, including cold bending forming equipment and other mechanical equipment, such as machine tools, tapping machines, slotting machines, boring machines, air hammers, gear hobbing machines, nail making machines, marking machines, etc. There are a wide variety of products, welcome everyone to visit and guide the factory!
FAQ
Q1. How to choose an appropriate machine ?
The machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.Q2. What about the delivery term?
Generally speaking, we need about 30 days to deliver the machine. If you require a short time to deliver the machine, we can make it in short time due to a large number of spare parts we stored.Q3. Why are the machine prices higher than others?
We insist quality drives the value for our customers. From each step of the machine producing till the choosing of the electric elements brands, We all take it very seriously.Q4. Do you have after-sales support?
We have a professional after-sales team. If required, we can send our engineers to go to the customers' site to guide to the machine installation and debugging.Q5. How to get a quotation?
1. Please tell we what kind of raw material and the max. thickness, and the profiles designs. Then I can quote you accordingly.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
