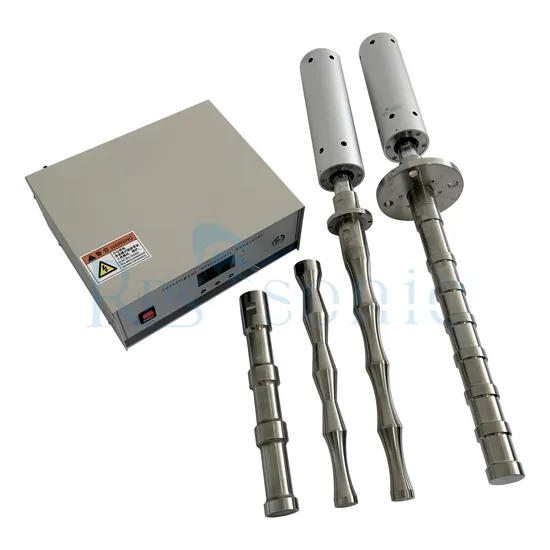

20kHz 3000W Ultrasonic Extraction Machine Ultrasonic Mixer

Product Description

20Khz 3000w Ultrasonic Extraction machine ultrasonic probe ultrasonic mixer

Model	SONO20-1000	SONO20-2000	SONO15-3000	SONO20-3000
Frequency	20±0.5 KHz	20±0.5 KHz	15±0.5 KHz	20±0.5 KHz
Power	1000 W	2000 W	3000 W	3000 W
Voltage	220/110V	220/110V	220/110V	220/110V
Temperature	300 ºC	300 ºC	300 ºC	300 ºC
Pressure	35 MPa	35 MPa	35 MPa	35 MPa
Intensity of sound	20 W/cm²	40 W/cm²	60 W/cm²	60 W/cm²
Max Capacity	10 L/Min	15 L/Min	20 L/Min	20 L/Min
Tip Head Material	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy

Ultrasonic extraction itself has two meanings: the application of ultrasonic technology and the extraction of components contained in the substance. That is, it is a new extraction technology that uses the special effects such as cavitation generated by ultrasonic waves to be used in the extraction process of chemical components of substances to extract the contained components quickly and efficiently.
Ultrasonic extraction of traditional Chinese medicine: in the extraction of traditional Chinese medicine, ultrasonic circulation extraction technology has been widely used. Ultrasonic extraction is to use the cavitation effect of ultrasonic waves to increase the penetration of solvents, increase the dissolution rate and the number of dissolution of drugs, thereby increasing the diffusion of material components, shortening the extraction time, and accelerating the extraction process. 1. The extraction temperature is low, and low temperature extraction can be used, which will not damage the medicinal properties of heat-sensitive drugs. 2. The extraction time is short, the extraction rate is high, the resources of medicinal materials are saved, the output is increased, and the production cost is reduced. 3. Adapt to a variety of solvents to meet the needs of various extractions.
Advantages of Ultrasonic Extraction
1. High extraction efficiency: The unique physical characteristics of ultrasonic can promote the destruction or deformation of plant cell tissue, so that the active ingredients of traditional Chinese medicine can be extracted more fully, and the extraction rate can be significantly increased by 50-500% compared with traditional techniques; 2. Short extraction time: ultrasonic The enhanced extraction of traditional Chinese medicine usually takes 24-40 minutes to obtain the best extraction rate, the extraction time is greatly shortened by more than 2/3 compared with the traditional method, and the raw material processing capacity of medicinal materials is large; 3. Low extraction temperature: the optimal temperature for ultrasonic extraction of Chinese medicinal materials is 40-60°C, it has a protective effect on the active ingredients in medicinal materials that are unstable when exposed to heat, easily hydrolyzed or oxidized, and at the same time greatly saves energy and energy consumption; 4. Wide adaptability: Ultrasonic extraction of Chinese medicinal materials is not limited by the polarity and molecular weight of the ingredients , suitable for the extraction of most types of Chinese herbal medicines and various components; 5. The extracted medicinal liquid has less impurities, and the active ingredients are easy to separate and purify; 6. The operation cost of the extraction process is low, and the comprehensive economic benefits are significant; 7. The operation is simple and easy , Equipment maintenance, easy maintenance. The extraction rate is increased by 50%-500%. The extraction time (minutes) is shortened by more than 2/3. The extraction temperature is 40-60°C to protect the active ingredients.
Multi-purpose introduction
1. It can be used for biological and plant cell crushing; 2. It can be used for the extraction of biological and plant active ingredients; 3. It can be used for low-temperature extraction of active ingredients of Chinese herbal medicine; 4. It can be used for BCR element form extraction; 5. Low energy state can activate bacteria; 6. High-energy state can kill live bacteria; 7. It can be used for DNA extraction and DNA shearing; 8. It can be used for gene introduction; 9. It can be used for aging treatment of original wine; 10. It can be used to break the dormant state of plant seeds, To improve the germination rate and early maturity period; 11. It can be used for two different solution polymerizations
