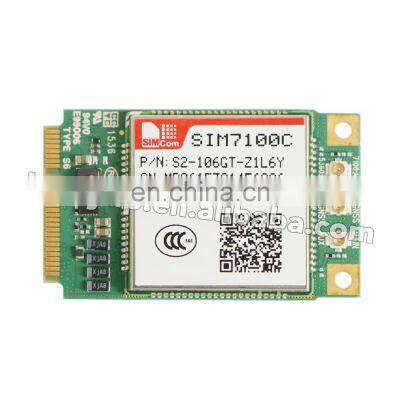

SIMCOM SIM7100C-PCie 4G LTE Module Development Board SIM7100C Evaluation Board

SIMCOM SIM7100C-PCie 4G LTE Module Development Board SIM7100C Evaluation Board

Product Description

Product Description
DescriptionSIMCom presents an ultra compact and reliable wireless module SIM7100X which is based on Qualcomm MDM9215multiple-mode LTE platform. SIM7100X is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating applicationcore: Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.General featuresSIM7100A• Quad-Band LTE-FDD B2/B4/B5/B17• Dual-Band UMTS/HSDPA/HSPA+ B2/B5SIM7100CFour-Band LTE-TDD B38/B39/B40/B41• Three-Band LTE-FDD B1/B3//B8• Dual-Band TD-SCDMA B34/B39• Dual-Band UMTS/HSDPA/HSPA+ B1/B8• GSM/GPRS/EDGE 900/1800 MHzSIM7100E• Five-Band LTE-FDD B1/B3/B7/B8/B20• Dual-Band LTE-TDD B38/B40• Dual-Band UMTS/HSDPA/HSPA+ B1/B8• Dual-Band GSM/GPRS/EDGE 900/1800 MHzSIM7100JC• LTE-FDD B1/B3/B8/B18/B19• LTE-TDD B41• Tri-Band UMTS/HSDPA/HSPA+ B1/B6/B8• Dual-Band GSM/GPRS/EDGE 900/1800MHzSIM7100JE• LTE-FDD B1/B8• Dual-Band UMTS/HSDPA/HSPA+ B1/B8• Dual-Band GSM/GPRS/EDGE 900/1800MHz• Control Via AT Commands• Supply voltage range: 3.4V~ 4.2V• Operation temperature: -40℃ to +85℃• Dimension: 30*30*2.9mm• Weight: 5.8g• LTE-FDD/Rel-9 Cat3• HSPA+ DC-HSPA+,Rel-10 HSPA+• GNSS gpsOne Gen 8B;standalone;assisted,XTRA-SIM7100A/C/E/JCSpecifications for Data transfer• LTE-FDD- Uplink up to 50Mbps,- Downlink up to 100Mbps• LTE-TDD- Uplink up to 18Mbps,- Downlink up to 80Mbps• TD-HSDPA/HSUPA- Uplink up to 2.2 Mbps,- Downlink up to 2.8 Mbps• TD-SCDMA- Uplink up to 128Kbps,- Downlink up to 384Kbps• HSPA+- Uplink up to 5.76 Mbps,- Downlink up to 42 Mbps• UMTS- Uplink/Downlink up to 384Kbps• EDGE Class:- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)• GPRS- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)• CSD- GSM data rate 14.4Kbps- WCDMA data rate 57.6Kbps- WCDMA 64kbps CSD for Video callCertificationsSIM7100A• FCC• PTCRB• ATT( ongoing )• ROHS• REACHSIM7100C• CCC• TA• CTA(onging)• ROHS• REACHSIM7100E• CE ( ongoing )• ROHS• REACHSIM7100JC• Telec ( ongoing )• Jate ( ongoing )• ROHS• REACHSIM7100JE• Telec (ongoing )• Jate (ongoing )• Softbank(ongoing)• ROHS• REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
