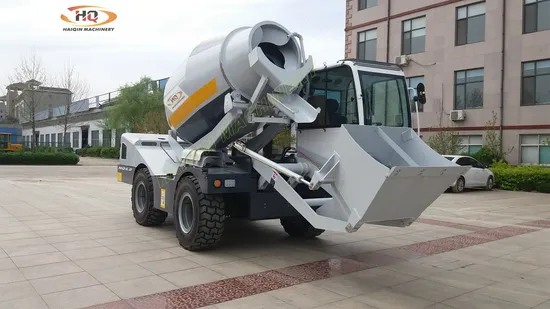

Haiqin Brand Self-Loading Mobile Concrete Mixer (HQ4.0) for Sale
| US$25,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HQ4.0
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1390mm
Vibrating Amplitude
2.2mm
Certification
ISO9001: 2000, CE, SGS, Rops&Fops
Condition
New
Color
According to Buyers
Engine
Yto 85kw or Yuchai 95kw or Cummins
Operation Weight
7800 Kgs
Concrete Output
4.0 M3
Concrete Loading Weight
40 Ton
Transport Package
Nude
Specification
CE, ISO, SGS
Trademark
Haiqin
Origin
Shandong, China
HS Code
87054000
Production Capacity
8000 Units / Year
Product Description
Haiqin Brand Self-Loading Mobile Concrete Mixer (HQ4.0) introduction .1, Standard Configuration and Feasures:
1) With Chinese YTO 85KW or Yunnei 95kw ENGINE, Cummins engine for option .
2)Chassis frame and the tank are made of manganese steel.the drum thickness is 6mm and buttom of the drum is 8mm.
3)Four wheel drive with 4 wheel air brake
4)Max.15 ton loading axles with good performance with the machine with full concrete loading
5)CVT transmission have good quality,Easier operate and never flameout at rough terrain.
6)Luxury cabin with FOPS&ROPS approved,With adjustable steer wheel,Luxury seat,Single handle joystick powershift control
7 about the rotation ,we use Eton Slewing motor, Chinese brand mixing motor
8)Discharge chutes removable and angle changable
9)Famous brand Camel battery with Big AH
10)Hydraulic water pumping system,With water meter.High pressure washing gun.
11) weighting system with print.
2,Interior photo of the mobile concrete mixer Cabin :
3, Clean production line :
4, Actual work picture of Haiqin Brand Mobile concrete mixer :
5, Loading pictures:
6, Details Specifications :
Drum capacity | 5.5m³ |
| Concrete output | 4m³. |
| Loading ratio | 76% |
Rotary drum | Discharge mouth height 1.8 meters.Level turn 300 ° (options) |
| Production capacity | 4 batches in an hour.16 cubic meters per hour |
| ENGINE | YTO 85KW or Yuchai 95KW or Cummins |
| transmission way | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4. |
Climbing ability | 30% |
speed | Low speed 0-25 km/h, high speed 0-45 km/h. |
| CAB | Ultra wide deluxe cab . ROPS type. |
hydraulic system | Open feed, two gear pump participate in action. |
joystick | A four-way hydraulic pilot with an electric control button controls the bucket. |
| bucket | 650L, hydraulic gate. |
chute | Equipped with two removable shaft pins to increase the discharge length. |
| Water supply system | Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional). |
| brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| Turn | Hydraulic steering, rear wheel steering. |
| tyre | 16/70-20 wire tires |
| power system | 24V |
| OIL TANK/water tank | 2 x210L water tank. Diesel tank: 125 litres.Hydraulic tank: 130 litres. |
weight | 7600KG |
| L*W*H | 7500MM*2700MM*3380MM |
wheelbase | 2.35M |
metering | Electronic weighing system (optional). |
