University Laboratory Research Corn Puff Snacks Soya Protein Extrusion Food Twin Screw Lab Food Extruder Machine

Product Description

Puff Snacks Food Twin Screw Lab Extruder
Product Description

Twin-screw lab extruder has the same main structure and functions as other double-screw extruder. But this small extruder is mainly used in lab for testing in research organization or school. It is equipped with some precise devices like touch operation screen, and sensors, and the key parts are made of better material. It can meet the special research requirements.
Brief Description of Twin Screw Lab Extruder
Twin-screw lab extruder snack machine is our company research for universities, research institutes and large and medium-sized enterprises engaged in various extrusion , extruded maturation, extruded variability study omnipotent models. It has gone through four generations of improvements to adapt to cereals, potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful,easy to operate and simply of parameters adjustment, test data accurate, easy maintenance.
Product Parameters

Technical Parameter of Corn Snacks Twin Screw Lab Extruder

Engine power	5.5Kw	Second series L/D	9.3/15/20.6	Pressure scope	0-30MPa
Engine speed-control	Frequency speed-control	Heating way	Heating ring	Pressure precision	0.01MPa
Screw diameter	Φ30	Cooling way	Water	Number of measuring pressure	3
Screw central distance	26mm	Temperature scope	20ºC-300ºC	Lubricate way	Oil pump forcing lubrication
Speed range	500rpm-1200rpm	Temperature precision	±1.0ºC	Oil pump power	0.12kw
Screw mode	Building block-combined type	Number of measuring temperature point	4	Feeding Power	0.18kw
First series L/D	11.6/12.7/23	Output	10-25KG/H	Percent of water	6%-60%

Voltage: In China: Three phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers' Local voltage according to different countries.
Sample Pictures

Snacks Sample Photos of Twin Screw Lab Extruder:
We can get different kind and different shape snacks food by the twin screw lab extruder snack machine.
Mould of Twin Screw Lab Extruder for reference
Feedback from Customer about the twin screw lab food extruder machine
Detailed Photos

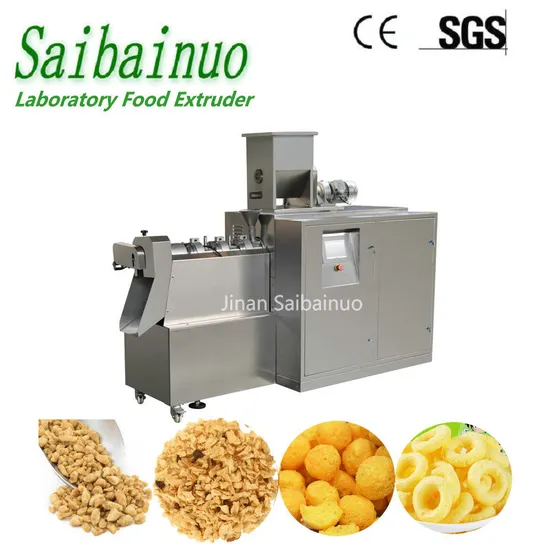

Twin Screw Lab Extruder Snacks Machine Pictures
