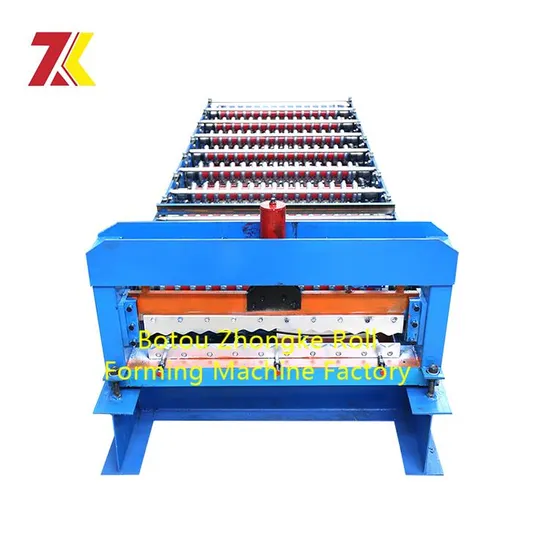

Zkrfm 850 Corrugated Roof Sheet Roll Forming Machines

Product Description

Product Show

Product Parameters

Formed Material	PPGI,GI,AI		Thickness:0.3-0.8mm
Decoiler	Hydraulic decoiler		Manual decoiler(will give you as free)
Main body	Roller station		9rows(As your requirement)
	Diameter of shaft		75mm solid shaft
	Material of rollers		45# steel, hard chrome plated on the surface
	Machine body frame		300 H steel
	Drive		Double Chain transmission
	Dimension(L*W*H)		7500*1500*1400mm
	Weight		4T
Cutter	Automatic		cr12mov material, no scratches, no deformation
Power	Main Power		4+3 KW
Voltage	380V 50Hz 3Phase		As your requirement
Control system	Electric Box		Customized(famous brand)
	Language		English(Support multiple languages)
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	8-12 m/min		The speed depends on the shape of the tile and the thickness of the material.

Production Process Steps

Detailed Photos

	Vertical plate shear head The Vertical Plate Shear Head is a crucial component of the roll forming machine, designed to precisely cut and trim metal sheets vertically, ensuring accurate and efficient shaping in the manufacturing process.
Levelling and flattening feed platform The Levelling and Flattening Feed Platform is an essential component of our roll forming machine, ensuring precise material alignment and flattening for seamless and accurate profile shaping
	Square Tube Feed Platform The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.

Our Customers Visiting

Packaging & Shipping

Company Profile

FAQ
Q1: How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
