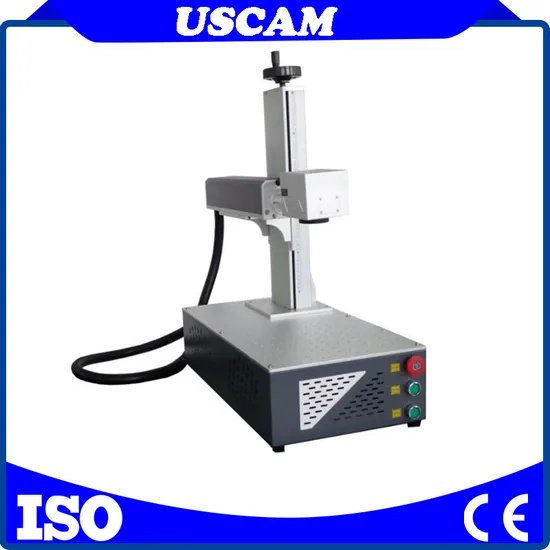

CNC Manufacturer Mini Portable Fiber Laser Marking Machine for Metal
| US$1,390.00-6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
USJP-20
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
20/30/50W/100W
Lifetime
100000hours
Working Accuracy
0.001mm
Control Method
Automatic
Current and Power
AC 220V/110V; 50Hz/60Hz
Engraving Speed
4000mm/S or 7000mm/S
Graphic Format Supported
Ai, BMP, Dst, Dwg, Dxf etc
Laser Length
1064nm
Laser Scanner Rang
110X110/200X200/300X300mm
Min.Line Width
0.01mm
Laser Source
Raycus/Jpt/Ipg/Max
System
Win7/8/10, 32 Bits/64bits
Card
Bjjcz
Software
Ezcad
Protective
Goggles
Transport Package
Plywood Package
Specification
Depend On Laser type
Trademark
USCAM
Origin
Jinan City
HS Code
8456110090
Production Capacity
30000/Year
Packaging & Delivery
Package Size
77.00cm * 47.00cm * 70.00cm
Package Gross Weight
60.000kg
Product Description
Fiber Laser Marking Machine adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. FurthermoreFiber Laser Marking Machine Price also enjoys the advantages of easy operation, low running cost, long-term trouble -free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.Technical Parameter
| Item Name | Technical Parameter | ||
| Model | USJ- 20W | USJ-30W | USJ-50W/100W |
| Laser power | 20W | 30W | 50W/100W |
| Laser wavelength | 1064nm | ||
| Laser type | Fiberlaser source | ||
| Max Pulse Energy | 0.5m J | ||
| Repeat frequency | 1KHz-1000KHz | ||
| Pulse width | 6-250 ns | ||
| Marking depth | 0.01-0.5mm | ||
| Marking area | 110*110mm/175*175mm/200*200mm | ||
| Rated power consumption | 500W | 800W | 1200W |
| Operating voltage | 110V- 240V/50-60 Hz/15A | ||
| Cooling | Air Cooling | ||
| Packing size | 770*470*700 mm (L*W*H) | ||
| Gross weight | 60kg KG | ||
| Package | Standard export wooden case | ||
| Parameter of fiber laser source | |||
| Pulsed fiber laser | 20W QB | 30W QB | 50w QB |
| Wavelength(nm) | 1060~1085 | 1060~1085 | 1060~1085 |
| Polarization | Random | Random | Random |
| Optical isolator | Yes | Yes | Yes |
| Nominal average output power (W) | ≥20 | ≥30 | ≥50 |
| Single pulse energy (mJ) @20kHz | 1 | 1@30kHz | 1@50kHz |
| Beam quality(M2) | <1.8 | <1.8 | <1.6 |
| Beam Diameter(mm) | 6~8 | 6~8 | 6~8 |
| Pulse duration(ns)@20kHz | <120 | <120@30kHz | 90-150@50kHz |
| Pulse repetition rate(kHz) | 20 - 60 | 30 - 60 | 50-100 |
| Output Power Tunability(%) | 10-100 | 10-100 | 10-100 |
| Output Fiber Cable length(m) | 2.0 | 2.0 | 2.0 |
| Working voltage(VDC) | 24±1 | 24±1 | 24±1 |
| Power consumption(20ºC)(W) | 200 | 300 | 340 |
| Cooling | Forced Air Cooled | Forced Air Cooled | Forced Air Cooled |
| Dimension W×D×H(mm) | 215×286×95 | 215×286×95 | 260×391×120 |
| Operating temperature | 0ºC~40ºC | ||
| Store temperature | -10ºC~60ºC | ||
| humidity | 30%~85% | ||
Application & Sample Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Parts of fiber laser marking machine
Packing and Shipping
Welcome to our factory
Get more information, please feel free contact Grace: export01 at uscamcnc com. My pleasure to help you. :):)
