Rajeyn CE RoHS Reach Approved Auto Toilet Urinal Flusher IR Sensor Eye

Product Description

Product Description
Working Principle
Active infrared sensor
Active infrared touchless sensors use the emission and reception of infrared beams to detect the presence and/or movement of objects or people in their field of detection. The technology is ideal for applications requiring a long and narrow detection range.

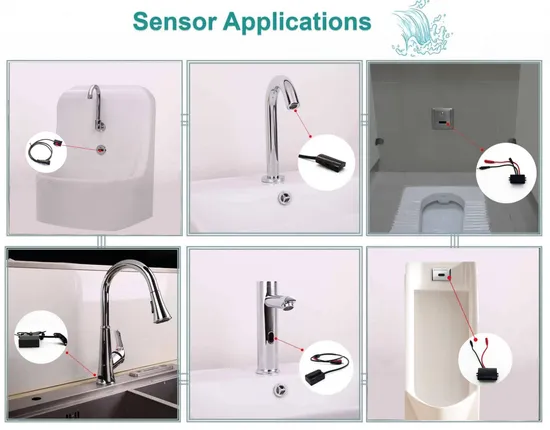

Infrared Sensor Applications
The infrared sensor is widely used in public washrooms, such as touchless faucets, automatic urinal flusher, automatic toilet flusher and automatic soap dispenser. The infrared sensors can be also used for touchless kitchen faucets and bathroom faucets. Although they are still optional in homes today. But eventually in the future, they will become a simple commonality for modern homes. Rajeyn infrared sensors are widely used in automatic sanitary ware, such as touchless faucets, automatic urinal flusher and toilet flush valve.
Detailed Photos
The sensor eye is widely used for automatic water taps and automatic urinal flush valves as well as toilet flush systems.
How does tap sensor work?
For sensor faucets, when your hands in the sensor range, water automatically comes out. When your hands remove from the sensor range, water automatically stops.

How does a urinal sensor work?
When a person stands in the sensing area (before usage), the urinal flusher will auto flush for 2 seconds; 2 seconds after the person leaves, the urinal flusher will automatically flush for about 6 seconds. However, the urinal flusher only flushes ONCE if used continuously over 2 times within 1 minute.
Rajeyn Sensor Features and Applications
Used for commercial and household touchless faucets/water dispensers etc.Adjustable sensor range and flushing time by a remote controller.Auto-save parameters if power failure.Low power consumption. 4AA alkaline batteries lasts about 2 years.Glue potting with strong moisture-proof function.High anti-interference and anti-vibration performance.We have more than 50 different sensor eyes and electrical wires for your selection.The automatic valve closing function of AC power-off can be widely used in intelligent bathroom products.
There are over 50 different sensor housings to suit different design PCBAs. They are variety of designs for all-in-one type and separated PCBA. Shapes including round, rectangle, semicircular etc. The sensor functions and wire connections can be tailor-made based on customers need.
Besides sensor cases, we have variety of waterproof wire connections. The most popular types are 4-pin waterproof wire connecting with control box for sensor taps and 2-pin as well as DC type waterproof wires for sensor urinal and sensor toilets. Below are some potting sensors with different sensor cases, PCBA and wires. We are capable of providing tailor-made infrared sensors for your automatic systems.
Product Parameters

Technical Parameters
Working power	DC6V
Average static power consumption	<30uA
Instant dynamic power consumption	<2.5W
Sensor function	Can be tailor-made according to customer's need
Sensor distance	Adjustable by remote controller
