World Famous PP Spunbond Nonwoven Fabric Making Machine Hg-1600/2400/3200mm
| US$250,000.00-1,500,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HG-1600/2400/3200
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
24 Month
Effective Width
1600/2400/3200mm
Capacity
5-25 Tons
Speed
100-500m/Min
Raw Material
Polypropylene
Processing
Melt Blown Nonwoven Fabric
GSM
10-200g/Square Meter
Transport Package
Wooden Cases
Specification
20m*8m*11m
Trademark
HG NONWOVEN
Origin
China
HS Code
8449009000
Production Capacity
15 Set/Year
Product Description

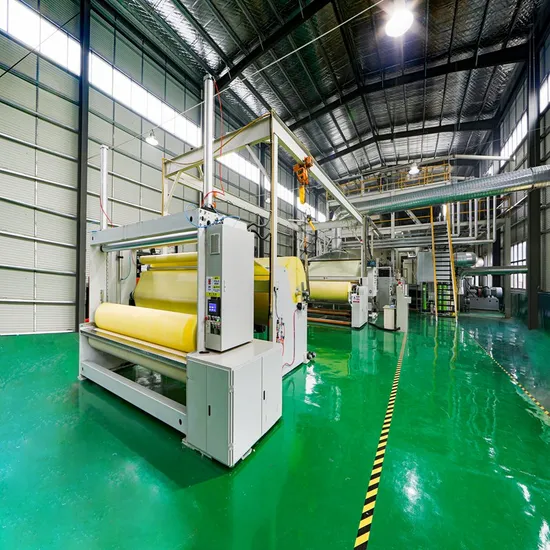

What is Spunbond Nonwoven Fabric Making Machines:
Non woven fabric making machine is suitable for PP spunbond non woven fabric making. It is a process that includes extrusion of polymers to form continuous filaments, which will be later conditioned, stretched and deposited onto a conveyor belt to create the web, then will be embossed and winded into spunbond nonwoven fabric rolls.
| Model | Effective width | Daily capacity | Speed | Spinning system | GSM Range | Machine dimension |
| Length*Width*Height | ||||||
| HG-1600M | 1600MM | 2000Kg | 100M/Min | Meltblown | 10-200 | 15*8*8 meter |
| HG-2400M | 2400MM | 3000Kg | 15*10*8 meter | |||
| HG-3200M | 3200MM | 4000Kg | 15*12*8 meter | |||
| HG-1600S | 1600MM | 5000Kg | 200M/Min | Spunbond | 10-200 | 20*8*11 meter |
| HG-2400S | 2400MM | 7000Kg | (S) | 20*11*11meter | ||
| HG-3200S | 3200MM | 10000Kg | 20*15*11meter | |||
| HG-1600SS | 1600MM | 9000Kg | 350M/Min | Spunbond | 8-150 | 35*10*11meter |
| HG-2400SS | 2400MM | 13000Kg | (SS) | 35*12*11meter | ||
| HG-3200SS | 3200MM | 16000Kg | 35*15*11meter | |||
| HG-1600SSS | 1600MM | 12000Kg | 400M/Min | Spunbond | 8-100 | 40*10*11meter |
| HG-2400SSS | 2400MM | 16000Kg | (SSS) | 40*12*11meter | ||
| HG-3200SSS | 3200MM | 23000Kg | 40*15*11meter | |||
| HG-1600SMS | 1600MM | 10000Kg | 400M/Min | Spunbond/ | 8-80 | 40*15*11meter |
| HG-2400SMS | 2400MM | 14000Kg | Meltblown/ | 40*18*11meter | ||
| Spunbond/ | ||||||
| HG-3200SMS | 3200MM | 18000Kg | 40*25*11meter | |||
| HG-1600SMMS | 1600MM | 12000Kg | 500M/Min | Spunbond | 8-80 | 45*15*11meter |
| Meltblown | ||||||
| HG-2400SMMS | 2400MM | 17000Kg | Meltblown | 45*18*11meter | ||
| Spunbond | ||||||
| HG-3200SMMS | 3200MM | 23000Kg | 45*25*11meter | |||
Application Area
Selecting the Ideal Non woven Fabric Machine Line for the Right Application
Packaging
Nonwoven fabric used in packaging industry is the most popular like shopping bag, flower wrappers, laundry bag, and garment bag, and etc.
Medical
Spunbond and meltblown nonwoven fabric will be the best choice in usage of medical field like face mask, surgical gowns, disposable mattress and etc.
Hygiene
Spunbond nonwoven fabric used in hygiene will be required softer and breathable in hygiene filed like baby or adult diaper and feminine products etc.
Agriculture
Nonwoven fabric roll used in agriculture field like crop cover, plant protect, and seed blankets, usually require the function of anti-UV to protcet plant.
