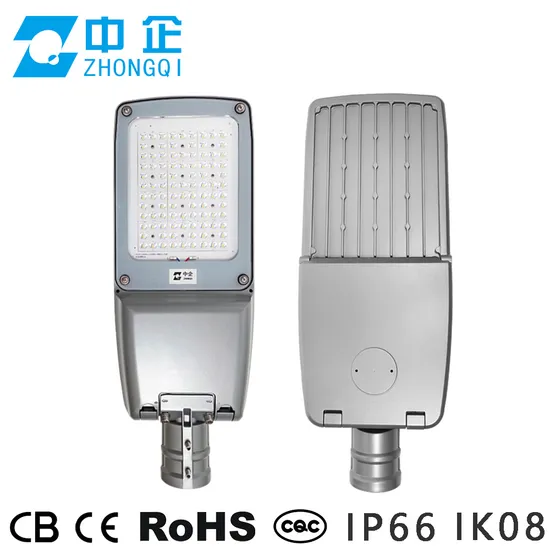

Customized Private Mould Garden Lighting Die-Casting Projector LED Street Light CE RoHS Waterproof IP66 Smart LED Driver Motion Sensor Solar Outdoor Lighting
| US$44.00-96.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
508A-S
Lamp Body Material
Aluminum
Power
60-100W
Application
Square, Highway, Garden, Parking Lot, Airport Pathway
IP Rating
IP66
Certification
CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
Input Voltage
100-240V
With Light Source
With Light Source
LED Chips Brand
Epistar
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
Type II Type III Type IV Type V
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector Aluminum
Driver
Meanwell Inventronics Moso Sosen Do
LED Type
5050 / 3030 /3535 LED Chip
Option
Microwave Sensor Zhaga NEMA
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
3G Vibration / 2g Vibration
Installtion
Horizontal Vertical Adjustable
Service
Dialux Light Simulation
Application 2
Urban Public Lighting Area Lighting Airport Lighti
System Power
50W 60W 100W 120W 150W 200W
Surge Protection
Surge Protection Projector
Transport Package
Carton
Specification
690*230*140mm
Trademark
ZQ Lighting
Origin
China
HS Code
9405421900
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
690.00cm * 240.00cm * 140.00cm
Package Gross Weight
6.000kg
Product Description
Product DescriptionProduct Features | |||||||
| L508 for urban and street lighting of high architectural value | |||||||
| High pressure die casting housing, which has advantages of impact resistance and corrosion resistance. | |||||||
| 3G vibration test approved under American standard ANSI C136.31. | |||||||
| Luminous flux can maximum 180 lumen per watt, Different CCT is available on customer request | |||||||
| High light transmittance lens available: TYPE II, TYPE III, TYPE IV, TYPE V | |||||||
| Tempered glass protect PC lens exposing from UV, moisture, dust environment, better lighting output effects | |||||||
| IP66 driver chamber structure, different configurations can be integrated with IOT Smart System for creating modern Smart Cities | |||||||
| Horizontal and vertical mounting options | |||||||
| Toolless operation design makes fixture easy to install and maintain |
| TECHNICAL PARAMETERS | |||||||
| Item name | Input voltage | Freqency range | Power Factor | CRI | CCT | Lifetime | Ta |
| Street light | AC90-305V | 50/60HZ | 0.95 | >70 | 2700-6500K | >50000H | -25ºC~55ºC |
| IP Grade | IK | LPW | THD | Dimming | Color | Mounting | Pole diameter |
| IP66 | IK08 | 100-160 | ≤20% | YES | Customized | Adjustable | 48-60mm |
| Product Model | Power(W) | Premium LPW(lm/W) | Standard LPW(lm/W) | N.W.(kg) | G.W.(kg) | Product Size(mm) | Packaging Size(mm) |
| ZQL-L508 | 30 | 150 | 130 | 3.40 | 4.10 | 469*230*94 | 500*175*140 |
| ZQL-L508 | 50 | 150 | 130 | 3.50 | 4.20 | 469*230*94 | 500*175*140 |
| ZQL-L508 | 100 | 150 | 130 | 4.50 | 5.40 | 628*230*94 | 690*230*140 |
| ZQL-L508 | 150 | 150 | 130 | 4.70 | 5.60 | 628*230*94 | 690*230*140 |
| ZQL-L508 | 200 | 150 | 130 | 4.90 | 5.80 | 628*230*94 | 690*230*140 |
| ZQL-L508 | 250 | 150 | 130 | 9.20 | 10.40 | 795x320x140 | 840*380*180 |
| ZQL-L508 | 300 | 150 | 130 | 9.50 | 10.70 | 1035x320x140 | 1080*380*180 |
| ZQL-L508 | 400 | 150 | 130 | 12.10 | 13.60 | 1035x320x140 | 1080*380*180 |
| ZQL-L508 | 500 | 150 | 130 | 12.50 | 14.00 | 1035x320x140 | 1080*380*180 |
