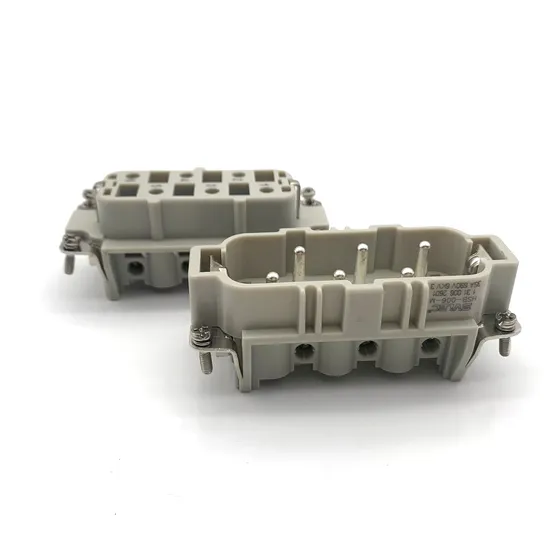

HSB High Current Male and Female Rectangular Heavy Duty Connector

Product Description

HSB high current male and female rectangular heavy duty connector

Product Name	Heavy duty connector
Model NO.	1310062601 male, 1310062701 female
Number of contacts	6+PE
Rated current	35A
Rated voltage	690V
Wire gauge	6mm²
AWG	10
Termination terminal	Screw terminal
Insulation resistance	≥1010 Ω
Insert material	PA66
Flammability acc	V0
Mating cycles	≥500
Contacts material	Copper alloy (Hard-silver plated)
Contact resistance	≤1mΩ

SVLEC Modular units series is a new system of inserts designed to meet the specific requirements of individual customers. In close cooperation with potential users a range of modular inserts have been developed allowing the simple assembly of custom designed complete connectors which meet the diverse requirements encountered by designers today.Modular units is a logical development of the product series which already offers the combination of power and signal circuits in one connector.

Packing & DeliveryFor product in stock, we will ship within 5-7 days.
For OEM product, please inquire.
Transport Package:PE bag/Bubble bag→Carton→Pallet
Payment Item: T/T , 50% Deposit, 50% Balance Before Shipment.Delivery Item: EXW , FOB Shanghai ,CIF, CFR via Express, Air plane, ShipCertifications Our Company
Kunshan SVL Electric co., LTD., located in German industrial zone, kunshan city, jiangsu province, with a workshop area of 3000 square meters.We are innovative Scientific and technological enterprise integrating R&D, production and sales.
SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC 's high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry, process industry, infrastructure, factory automation and other industrial fields.
Our Customers
FAQ 1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the SVL certifications have?
A: ISO9001:2008,, CSA. CE
4. Q:What does SVL can provide for the product' certification?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: 3-5 DAYS.
6. Q: Volume order lead time?
A: 1-2 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
