1500W Water Cooling Fiber Laser Welding Machine

Product Description

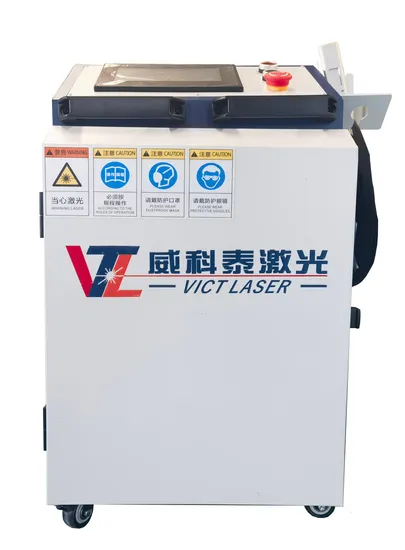

1500W Laser Welding Machine

Basic Info.
Model NO.		HWF-1500C		Technical Class		Continuous Wave Laser
Control		Handheld		Power Density		Deep Fusion Welding
Laser Classification		Fiber Laser		Type		Portable Welding Machine
Frequency		1-5000Hz		LaserWavelength		1080±5nm
Working Mold		Continuation/Modulation		Power Adjustment Range		10-100%
Positioning		Red Guide Laser		Length of Fiber-Optical		10m
Welding Speed		10-160cm/min		Material Thickness		<3.5mm(Depends on The Material)
Cooling Method		Water Cooling		Wire Diameter		0.8/1.0/1.2/1.6/2.0 mm
Specification		1350*1170*1340		Transport Package		Wooden Box
Origin		Shandong,China		Trademark		Victlaser
Production Capacity		500sets/Month		HS Code		8456110090

Advantages of the product

Advantages of the product
The laser welding machine has the characteristics of concentrated energy, no pollution, small welding spots, wide range of weldable materials, strong applicability, high efficiency, and high-speed welding. It can achieve spot welding, butt welding, seam welding, seal welding, etc. with a high aspect ratio, small weld width, and small heat-affected zone. Moreover, the weld has small deformation, fast welding speed, smooth and beautiful appearance. High-quality welds can be obtained without post-treatment or with simple processing after welding.
Low cost input: low price, high price; almost no maintenance; Few consumables; High yield, high return Stable and reliable quality: almost no deformation after welding, no need to polish after welding.

Product Parameters:
MODEL				HWF -1500C
Laser type				Fiber
Wavelength				1080nm
Power				1500W
Frequency				20-5000Hz
Output focal length				150mm
Scanning range				Line 0-5mm@welding; Line 300mm@cleaning
Depth of welding				max.5mm
Cooling method				Water cooling
Fiber length				10M
Port				1 way gas
Power consumption				≤6KW
Air pressure requirement				4-6Bar(Select nitrogen,argon according to process requirements.)
Electricity demand				1500W @ AC220VAC 50/60Hz

Product Description 1500W Laser Welding Machine · Optical fiber handheld welding gun
· QBH interface mode, simple structure, air blowing function and safety protection function
· Constant temperature refrigerator
· High efficiency compressor, water pump, overtemperature alarm, flow protection
The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding.
The system is equipped with single swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body.
The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect.
It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts.
The utility model has the advantages of simple operation, beautiful weld and fast welding speed.
Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate.
The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.
