Fully Automated High-Capacity Industrial Log Debarker for Plywood Production

Fully Automated High-Capacity Industrial Log Debarker for Plywood Production

US$1,000.00-11,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HBZY-802
Warranty
18 Months
Single Roll Diameter
150mm
Double Roll Diameter(Mace)
180mm
Bark Crusher Power
15kw
Hydraulic Feeder Power
7.5kw
Transport Package
Container
Specification
Customized size
Origin
Shandong, China
HS Code
8465990000

Product Description

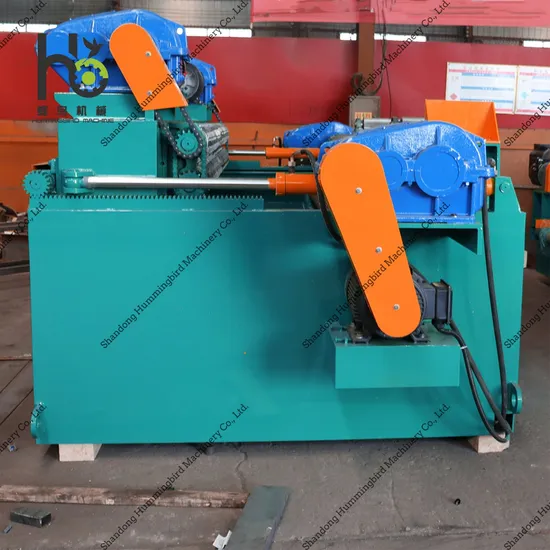

This Log Debarker Machine is designed for modern wood processing, integrating efficient production and intelligent control. The core models include the 402/802 special felling debarker, equipped with an integrated bark crushing system to realize waste resource utilization; it is suitable for all kinds of soft and hard logs (such as pine, oak, etc.). Its modular design combines flexibility and durability, which can meet the diverse needs of plywood factories in tropical areas and small and medium-sized wood processing companies, significantly reducing waste processing costs by 20%, and is a full-chain upgrade solution from log pretreatment to high-value-added production.
Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!
Product Parameters
Model HBZY-401 HBZY-402 HBZY-801 HBZY-802
Processing Length 1400mm 1400mm 2700mm 2700mm
Max.Processing Diameter 600mm 600mm 700mm 700mm
Min.Processing Diameter 80mm 80mm 50mm 50mm
Line Speed 80m/min 80m/min 60m/min 60m/min
Single Roller Power 11kw 11kw 11kw*2 11kw*2
Double Roller Power 11kw 11kw 11kw*2 11kw*2
Bark Crusher Power -- 15kw -- 15kw
Hydraulic Feeder Power 7.5kw 7.5kw 7.5kw 7.5kw
Total Power 29.5kw 44.5kw 55.5kw 70.5kw
Single Roll Diameter 150mm 150mm 150mm 150mm
Double Roll Diameter(Mace) 180mm 180mm 180mm 180mm
Overall Dimension(L*W*H) 3.8x2.2x1.4m 3.8x2.2x1.4m 5.2x2.2x2.1m 5.2x2.2x2.1m
Weight 4.2T 4.2T 9T 9T

Detail Accessories

Suitable for all softwoodand hardwood.
350 reducer, moresolid and stable.
Equipped with hydraulic stationradiator, more suitable for use in tropical areas
Chrome plated roller,more wear resistantand durable.
Press the button oncontrol system tomanually adjustment is very convenient, fast response, simple and safe operation.
402/802 Exclusive
Log debarker with bark crusher, make the waste bark to be small piece, save time, effort and space.
Features
Transport
About Service

Why Chose Us

FAQ
