Paper Plate Forming Machine Br-P001

Product Description

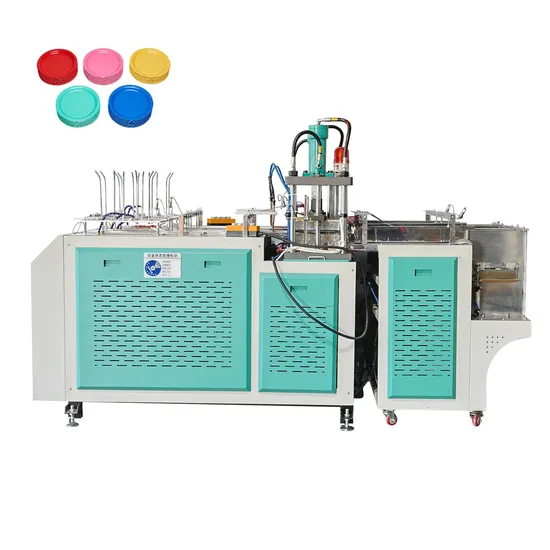

Product Description Paper Plate Forming Machine
Paper plate machine adopts straight-line forming which is paper feeding, forming and collecting in one straight line. Compared with the traditional paper plate machine, BR-P001 has the advantage of stable forming, high efficiency and labor saving. BR-P001 is hydraulic machine with double stations, two stations are controlled by different motors, which means two stations can work separately, acheiving that one machine can produce different sizes and shapes of paper plales at the same fime.The main working principle is hydraulic system, the hydraulic system has the advantage of easy operating and stable forming. The machine uses PLC and whole processing photoelectric tracking, which enables machine work fully automatic,safely and intelligently. The paper plate machine can be directly connected to packing machine to make continous productlion line.
Product Parameters

Model	Paper Plate Forming Machine BR-P001
Paper plate size	4-12.5"
Paper grams	100-800gsm
Paper materials	Base paper,whiteboard paper,Ivory cardboard,aluminum foil paper or others
Capacity	Double stations 40-110pcs/min
Power requirements	380V 50Hz
Total power	8kv
Weight	1600kg
Specifications	3500x1300x1900mm
Air supply recuirement	0.4Mp3.0.3cube/min
Other notes	Customize
Oil cylinder	ML-80-150-5T-X
Cylinder stroke	160mm

Company Profile
FAQ
1.Q:What is the machine warranty? A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 2-3 months after get the down payment.
4.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
5.Q:Does the packing strong?
A:Yes, of course! Packing is with wood pallet or wooden cases, suitable for long-distance road and vessel transportation and various types of weather conditions.
6.Q:How do I order spare parts?
A: Have the machine model and serial number (nameplate). In your parts manual, have the page number, item number, and parts description. Belts, for example, come in many different widths, lengths, and thickness. Having all the above information ensures the correct item is ordered.
7.Q:Are you manufacturer?
A:Yes, we are manufacturer. Welcome to visit us and look inside the machine details, to trace machines original manufacturing processes, and to know the people behind the machines. We can also arrange to arrange a video call to have a factory tour.
8.Q:Do you have stock product to sell?
A:Actually our machine need 2-3 months to manufacture, and there are many orders from China and abroad, so we need produce the machiney to your customized requirements, and your order will be highly attention to manufacture.
9.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine .
10.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery.
