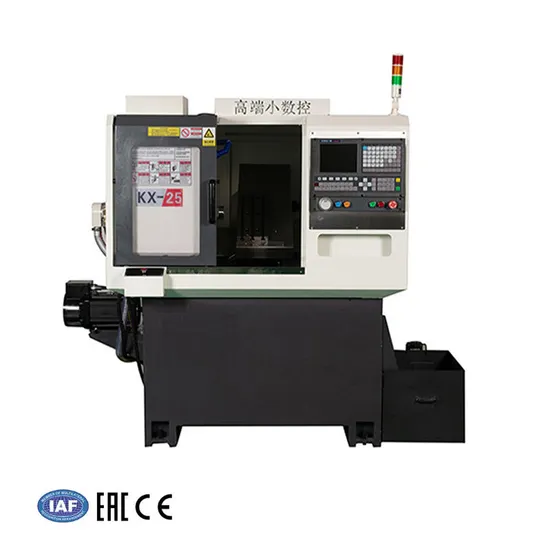

Mini CNC Lathe Machine with Manufacture Price Metal Lathe Machine
Basic Info.
Model NO.
KX-25R500
Weight (Kg)
1500
Spindle Bore(mm)
25
Dimension(L*W*H)
1700*1300*1630
Voltage
380V
Max. Spindle Speed (r.p.m)
3500 r.p.m
Machinery Test Report
Provided
Spindle Motor Power(Kw)
2.2
Travel (Z Axis)(mm)
180 mm
Machine Type
Slat Bed CNC Lathe
Travel (X Axis)(mm)
500 mm
No. of Spindles
Single
Max. Length of Workpiece (mm)
180
Number of Axes
2
Width of Bed (mm)
25 mm
CNC Control System
Nanjing Kt
Transport Package
Wooden Case
Trademark
YASHU
Origin
Guangdong, China
Production Capacity
500 Set/Sets Per Month
Product Description
Product Description
| Technical Parameters | | | | | ||||
| Item | | | Standard Value | Maximum Value | ||||
| Processing Capacity | Maximum bar material through-hole diameter | | 25mm | 26mm | ||||
| | Maximum granule diameter (disc type) | | 200mm | 300mm | ||||
| | Maximum processing work piece length | | 150mm | 180mm | ||||
| | Stainless steel single side cutting amount | | 2mm | 2.5mm | ||||
| | Work piece applicable machining accuracy | | ±0.01mm | - | ||||
| | Machined surface smooth finish | | 1.6Ra | - | ||||
| | Tool rest center height | | 40mm | - | ||||
| | Machine tool turning diameter | | 250mm | - | ||||
| | Square knife specifications | | 16mm | - | ||||
| Travel | X axis effective travel (diameter) | | 500mm | - | ||||
| | Z axis effective travel | | 180mm | - | ||||
| Feed | X axis fast moving speed | | 25m/min | 30m/min | ||||
| | Z axis fast moving speed | | 25m/min | 30m/min | ||||
| | X axis servo power | | 1.3KW | - | ||||
| | Z axis servo power | | 1.3KW | - | ||||
| Spindle | Maximum spindle speed | | 3500rpm | 4000rpm | ||||
| | Spindle motor power | | 2.2KW | - | ||||
| | Spindle nose model | | A2-4 | - | ||||
| | Hydraulic chuck available dimensions | | 5 inches | 6 inches | ||||
| Size & Weight | External dimensions | | Estimated 1700*1400*1600mm | - | ||||
| | Overall weight / Net weight | | Estimated 1400KGs | - | ||||
| Machine Tool Specifications and Component Items | | Specifications | Standard Configuration | Optional Configuration | ||||
| Component Specifications | Lead screw | 25mm | Taiwan grinding precision ball screw | - | ||||
| | Guide rail | 25mm | Taiwan H-class linear guide rail | - | ||||
| | Axle bearing | - | Chinese brand fore part 2 rear 2 high speed bearings | | ||||
| | Spindle motor | 2.2KW | Frequency conversion drive type | 3.7KW servo spindle | ||||
| | Feed servo | 1.3KW | Yashu & DMC invent joint developed high speed servo | - | ||||
| | Numerical control system | - | Yashu - KaiTong joint developed system | GSK / Taiwan SYNTEC / Others | ||||
| Machine Tool Specifications | Lathe bed form | 30 degrees | Slanting bed lathe | - | ||||
| | Base form | - | Heavy duty anti deformation patented base | - | ||||
| | Clamping method | - | Hydraulic clamping | - | ||||
| Optional Devices for the Machine | Fly cutter / End face or side face 1 live tooling / End face or side face 2 live tooling / Guide brush support / Vibration plate automatic feeding device / Oil bar feeder / Full automatic feeder | | | | ||||
| * Tips: The above configuration parameters are for reference only and are subject to the listed configurations and physical acceptance based on the price composition. | | | | | ||||
