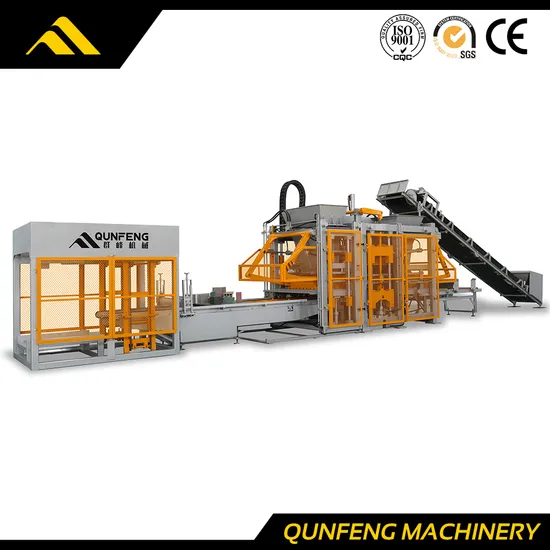

Automatic Concrete Block Making Machine (QF1300) /Automatic Paving Brick Machine/Block Machine

Automatic Concrete Block Making Machine (QF1300) /Automatic Paving Brick Machine/Block Machine

US$74,000.00-150,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QF1300
Type
Vibration Molding
Transport Package
Stand Seaworthy Packing
Trademark
Qunfeng
Origin
China
HS Code
8474809090
Production Capacity
300 Sets/Year

Product Description

Product Description

Features
This machine has large capacity and can produce various kinds of the concrete products; the design of secondary feeding is to produce the colorful paving stones. The height can be increased to meet the customer's requirement and the max height of the blocks can be 400mm. It has the feature of stable and reliable performance and suitable for the large and medium scale enterprises to have the fully-automatic production line and fully-automatic production line with curing rack which both have high level of automation, it can maximize the capacity and benefit.
1)The main frame adopts strengthened square tube with four guiding pillars. The mould frame and presshead are equiped prolonged guide sleeve ensure the orientation precision. The key part use damping rubber to reduce the vibration shock to main framework, which keep the main structure stronger and longer lifespan.
2)The double-cylinder down demould connects with arm type rigid synchronous mechanism .By this it can make sure the synchronism of demoulding and the perfect quality in block production
3)To accommodate different requirements, upgraded model QFT10-300 can make brick with the height of 50-300mm, both technical and system performance have been promoted at the same time.
4)High capacity, great benebit, it is suitable for big/medium-sized enterprises to option the fully automatic production line to achieve a high automation and improve their benefit back.
Technical data
Dimension 3560×2130×3030 mm
Rating pressure 21MPa
Vibration Table vibration
Vibration frequency 2800 - 4500r/min
Pallet size 1100×950mm
Cycle time 15-25sec.
Power 35.5 kW
