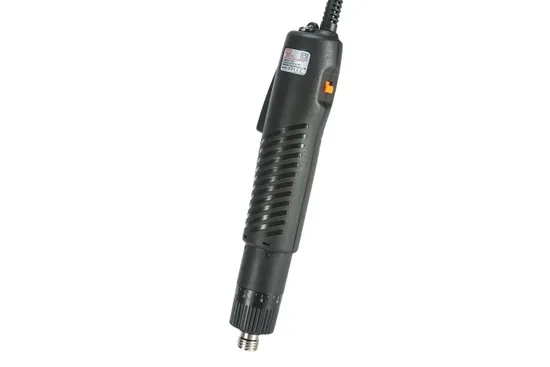

Bsd-102lb Kilews Low Torque Compact DC Semi-Automatic Screwdriver for Production Line

Bsd-102lb Kilews Low Torque Compact DC Semi-Automatic Screwdriver for Production Line

US$34.45-60.54 10 Sets (MOQ)

Basic Info.

Model NO.
BSD-102L
Voltage
DC Low Voltage
Power Supply Voltage
220V
Automation
Semiautomatic
Power Source
Electricity
Function
Professional, Household
Condition
New
Customized
Non-Customized
Input Voltage
DC 36V
Torque (N.M)
0.4~3.5
Power Consumption
45W
Speed (r.p.m)
1000
Applicable Screw Size
2.6~5.0 mm
Starting Method
Trigger Start
Transport Package
33.5*11*9cm
Specification
DC TYPE ELECTRIC SCREWDRIVER WITH POWER SUPPLY
Trademark
BSD
Origin
China
HS Code
84672990
Production Capacity
50000 Piece/Year

Product Description

Features
Economic Value Models. High stability, NOT impact of Voltage changes , free from fatigue under long-time using. Small, light body , specially design for the precise needingof tiny screws. Torque accuracy and stability, rotation speed selected by switches Hi & Lo. applied to Small appliances,Electronics,Toys,Processing and assembly industry. Made in China. Specifications
No Item Data
1 Torque 0.4~3.5 N.m 4.08~35.71 kgf.cm 3.54~30.98 Lbf.in
2 Unloaded Rotation Speed(r.p.m) 1000
3 Torque Adjustment Stepless
4 Screw Size Dia(mm) 2.6~5.0(Machine Screw) 2.6~4.0(Tapping Screw)
5 Power Consumption 45W
6 Weight(g) 445
7 Length(mm) 230
8 Repeatable Torque Accuracy (%) ±5%
Applicable Bit Type

External Dimention

Torque Range Reference Chart

Product Configuration1
Successful Project

Company Photo
