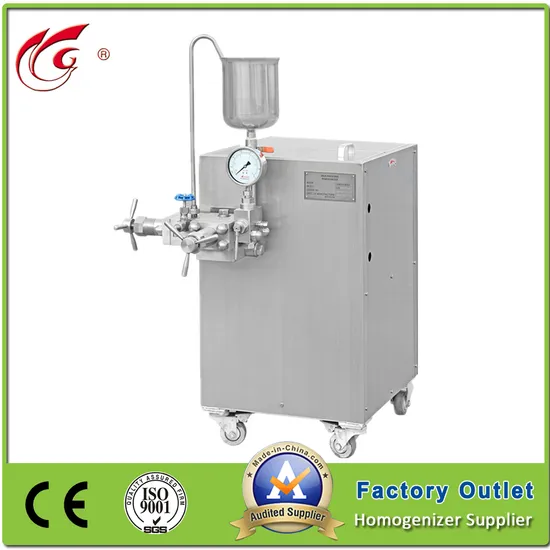

High Pressure Small Chemical Homogenizer (GJB30-40)

High Pressure Small Chemical Homogenizer (GJB30-40)

US$2,000.00-2,300.00 1 Set (MOQ)

Basic Info.

Model NO.
GJB30-40
Application Area
Food, Chemical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
None
Stirring Type
None
Working
None
Model
Gjb30-40
Rated Flow
30L/H
Rated Pressure
40MPa
Working Pressure
0-25MPa
Motor Power
3kw
Size
95X75X120cm
Weight
230kg
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
CE
Trademark
CHANGGUAN
Origin
Changzhou
HS Code
8479820090
Production Capacity
300set/Year

Product Description

High Pressure Small Chemical Homogenizer (GJB30-40)
Introduction of high pressure homogeniser pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.
Application:
It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.
1.For milk,soybean milk,could make fat globule thin observably,make it easy to assimilate.It is good to increase the edible value.
2.For ice cream,make the liquid fine and loosen and improve internal quality.
3.For emulsion,colloid,juice,serosity,could avoid and decrease the separated layers of liquid material,improve the appearance of liquid material,and make it identical coloury liquid.
4.As transportation pump usage
It will come into high pressure by our machine.Powder will be made by dryness equipment.Our machine is important process of manufactorying powder.
Feature:
1.Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2.The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification.
Warranty:
12 months
Product Specifications
Name Lab style
type GJB30-40
Rated flow(l/h) 30
Rated pressure(MPa) 40
Working pressure(MPa) 0~32
Weight ( kg) 230
Size (cm) 95×75×120
Power (Kw) 2.2
If you want more details ,you can contact us at any time,we will try our best to solve your problem
