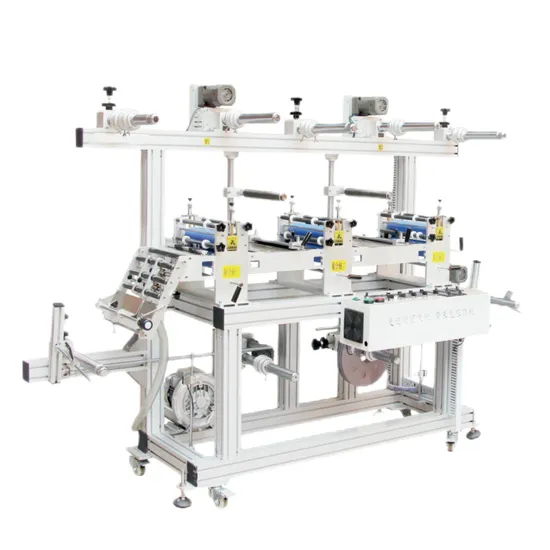

HDPE Film, Plastic Pet, Sticker Tape, Multilayer Automatic Laminating Machine

HDPE Film, Plastic Pet, Sticker Tape, Multilayer Automatic Laminating Machine

US$15,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KD-T300/420-4
Application
Packaging Paper, Film Material, Color Printing, Soft Board
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Matt Film
Plastic Film Mulching Modes
Cold Laminating
Performance
Anticorrosive
Certification
CE & ISO & SGS
Lead Time
1 Month
Concentrate Width
300mm
Machine Power
4.0kw
Transport Package
Seaworthy Wooden Case
Trademark
KEDOU
Origin
Jianfsu, China
HS Code
8411100000
Production Capacity
1000 Sets/Year

Product Description

Main Parameters
Model KD-T300/420-3 KD-T300/420-4 KD-T300/420-5
Unwinding shaft 3 sets 4 sets 5 sets
Rewinding shaft 3 sets 4 sets 5 sets
Laminating width 290mm/410mm 290mm/410mm 290mm/410mm
Positioning accuracy ±0.2 ±0.2 ±0.2
Material diameter 350mm 350mm 350mm
Power 0.7kw 1.0kw 1.2kw
Dimmension 2700*1000*1600 3000*1000*1600 4200*1000*1600
Weight 300/350kg 350/400kg 400/450kg

Features
- Overall casting of the frame by coated steel for extending the service life.
- Fully controlled by eletrical network, realize high-precison lamination and no bubbles.
- Silicone material laminating roller makes it good elasticity and non-viscous.
- Winding shafts are controlled by magnetic powder brake, easy to use.
- Allow multi-layers and multifunction lamination, feeding-lamination-discharging-lamination-rewinding.
Adjustable feeding frame Scratch-resistant design Roller moveable option
Applications
This machine is a special complex equipment for adhesive tape plastering products in such electronic label industry as mobile phone, computer and LCD. Magnetic powder tension control is adopted for the rolling and up-wrap. Single and double sides tape can be laminated. It has the function of receiving the bottom sheet and laminating many strips at one time and partially lamination coating.
The company's products include die cutting machine, laminating machine, slitting machine and product inspection machine, which are widely applied to such fields as computer, mobile phone, television, LED, backlight, touch screen, glue, printing, solar energy, automobile, medical treatment, etc.
Workshop
Our Service
* Within 24hrs feedback * Free sample cutting
* Factory inspection * Customization
* Installation & using training * Pre-sales technical support
* Prompt delivery * 12 months warranty time
About Us
Kedou, a supplier of quality die cutting equipment. At present, the company bases in Suzhou.
It is a scientific and technological enterprise integrating R&D, production and sales. Its products now are widely used in in medical, electronics, automotive and printing industries.
Kedou provides high quality die cutting equipment to meet customer's needs. With vast experience in cutting applications and solutions, Kedou is capable of providing tailor-made systems to increase your production efficiency and save your production cost.
