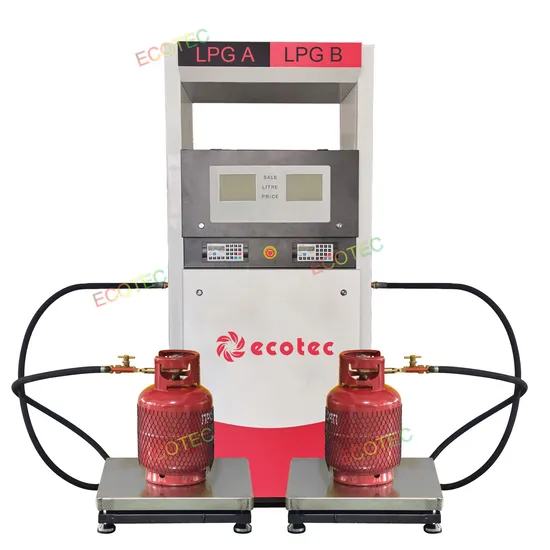

LPG Filling Gas Cylinder Weight Scale for LPG Station

Product Description

Ecotec LPG Station Dispenser LPG Filling Scale with APP fuction
All electronic smart controller, makes your business more easy!
Can add wifi/4g/3g board APP Fuction Included ·Station Management ·Stuff Mnagement ·Remote Control Dispenser ·Daily Date Inquiry ...

» Capacity x Accuracy: 150kg x 50g - standard
» Wireless communication to PC
» Precision / Accuracy: Class III
» Quantitative Filling
» Automatically cut off
» Intrinsically-safe Explosive-proof approved
» Safe and reliable
» One key set / preset weights
» Simple and convenient
» Automatic tare of the filling gun and bottle weight, filling operation convenient
» Platform dimensions: 45cm x 50cm - spring loaded to absorb shocks with 6mm rubber matt
» Weight of scale: 70kg
» Pressure:0 - 1.6MPa
» Valve life: +/- 2 years
» Battery operation: 45 hours minimum.
Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Owner and User
Fuel dispenser J series is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all
Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function, Suitable for single nozzle to 8 nozzle Suitable for both suction and submersible Suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser Suitable for regular flow rate and high flow rate Option with TV, LED, Printer, Bank Card reader etc Components with best cost performance
UL Listed motor Tatsuno Gear Pump Tatsuno Meter Using the best motor from China which have both ATEX and UL listed, single phase, three phase available Using the best Pump made in China, Tatsuno Gear Type inbuilt with Air separator, two stage of filter and bypass valve to adjust the pressure, water and ethanol resistant Using the best Flow meter made in China, 4 Piston type provides safe refueling environment without deterioration in performance for a long period of time, also water and ethanol resistant Flexible Function Design Electronic Calibration available by preset keyboard and communication protocol Long and short display value, Display sequence settable Decimal position settable Motor standby time adjustable to meet the different requirement Fueling with integer, Ten bits, Hundred bit and Thousand bit Re-display recall and settable 50 Filling record recall Lock function, Lock by password, Lock by monthly control, Lock by remote control Shift Record Printing Ticket content settable, such as station name, address, products Continue last interrupted fueling after power resume Different Password control Error Code to indicate the problem of dispenser Integration with ITL, PTS, DOMS, Fusion
Model List

Dispenser	Model	Product/ Pump	Flow Meter/ Nozzle/Hose	Display	Flow rate LPM
Suction type	A112S	1	1	2	50L/M
	A122S	1	1	2	45L/M
	A224S	2	2	4	50L/M
Remote /Submersible type	A112R	1	1	2	50L/M
	A122R	1	1	2	45L/M
	A224R	2	2	4	50L/M

Specification:

Pump	Type	Optional
	Inlet Pressure	≥54kPa.
	Flow rate (L/min. )	55±5
	Suction Distance (m)	6(vertical meter) / 50(horizontal meter)
Flow Meter	Type	Optional
	Accuracy	±0.2%
Motor	Voltage(V)	110V/220V/380V, 50Hz/60Hz
	Capacity(HP)	1HP(0.75kw)
Input Voltage		110V/220V/380V, 50Hz/60Hz
Nozzle		Auto Shut-off Nozzle
Environmental Condition		-40ºC~~+55ºC
Control Type		Solenoid Vale Control Type
Preset		Function Provided(Small LCD Indicator)
Display(Counter)	Type	LCD and Bright Backlight
	Digit of Volume	0~~999, 999(6 Digits), Decimal point can be changed
	Digit of Amount	0~~999, 999(6 Digits), Decimal point can be changed
	Digit of Unit price	0~~9999(4 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Optional Display	Type	LCD and Bright Backlight
	Digit of Volume	0~~99, 999, 999(8 Digits), Decimal point can be changed
	Digit of Amount	0~~99, 999, 999(8 Digits), Decimal point can be changed
	Digit of Unit price	0~~999999(6 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Totalizer		1~~9, 999, 999
Hose		4.5m
Weight		250kg
Dimension(L×W×H)		1060*600*2200(mm)
Dimension(L×W×H)Of Qty of Container		40FT: 44 20FT: 22

Company information
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can provide complete package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessories, Adblue and container stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizer etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with different standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standing for, we will always focus customer′s need, and struggle for it, Looking forward to cooperate with you
