PVC Label Removing Machine for Filament Grade Pet Bottle Recycling Plant

Product Description

Label Remover with Heat-shrink Label Separation Technology
In Asia, most of labels made from PVC heat-shrinkage film which cannot be removed through bottle prewashing; this is another major problem in PET recycling industry. BoReTech patented label separation machine completely solved this problem. Firstly, label scrapper will tear the labels, so that the labels no longer attached to bottles, and then,the labels will completely separated by adjustable wind-force and gravity difference.
BoReTech supplys two types of PVC label separation machines.One type is consist of label scrapper and label blower.Another one is compact device which has two functions in one and with less sapce occupation.
Patented label scrapping blade and bolt has the feature of long service life, high efficiency of label separation rate and low bottle damage. The general separation rate is over 90% and bottle-breaking rate within 1%; and service life can reaches up to 1000T.
Specially designed machine structure can minimize the time of changing blades, making sure the smooth running of the entire production line.

Model	Capacity (kg/h)	Power (kW)	Dimensions (mm)	Label Separation Rate(%)	Bottle Broken Rate(%)
XTB-600	800	11+1.5+4	3910*2710*2685	>90	<=5
WTB800B	1500	30	4710*1690*1950	>90	<=5

Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing
Label Separation Section

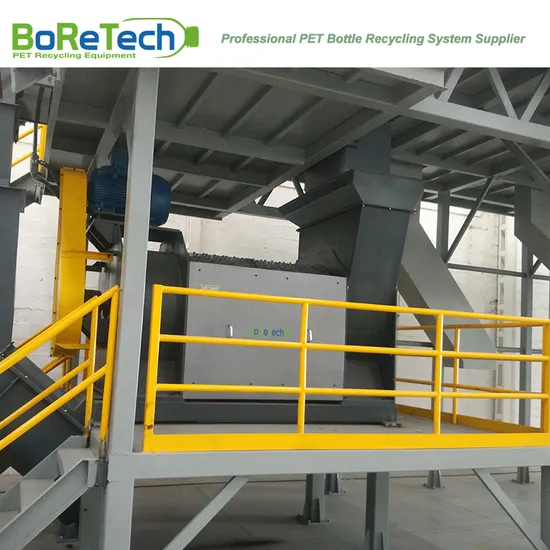

This label separation unit is mainly designed for heat shrinkage label removal.
Label separation unit from BoReTech has two types. One consists of patented label scrapping machine and label blowing machine which wind-force is adjustable. When facing limited space, the new design of compact label remover is also a good choice to scrap heat shrinkage labels and separate them by one machine.
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Boretech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries.Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.
