Henwi 200L Hot Sale Vacuum Machine to Make Skin Cream Cosmetic Stainless Reactor Agitator Toothpaste Production Making Machine

Product Description

HENWI TECHNOLOGY

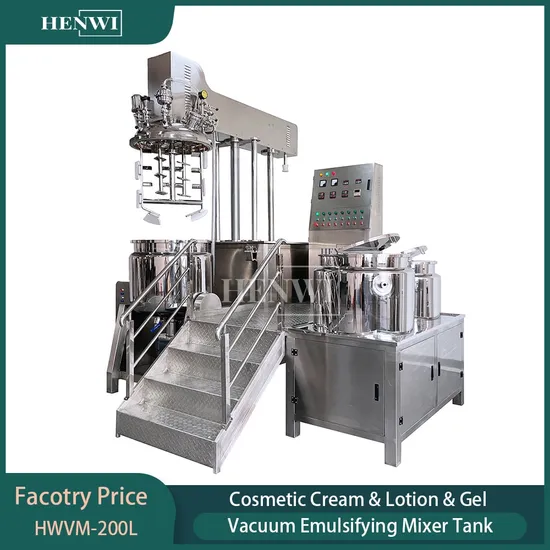

Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard Product Description Hydraulic lifting vacuum emulsifier mixer The **vacuum heating lifting homogenizing emulsifier with oil and water phases** is a specialized piece of equipment designed for emulsifying, homogenizing, heating, and mixing processes. It integrates advanced features such as vacuum suction, heating, cooling, lifting, and a dual-phase system for both oil and water phases.
This makes it ideal for producing high-quality emulsions, creams, lotions, and other products that require thorough mixing of oil and water phases. It is widely used in industries such as cosmetics, pharmaceuticals, food, and chemicals, etc.

Application The vacuum heating lifting homogenizing emulsifier is used in a variety of industries due to its multifunctionality:- **Cosmetics Industry**: Ideal for producing lotions, creams, serums, and other skincare products. The oil and water phase tanks ensure thorough mixing and emulsification of ingredients, resulting in a smooth, stable product.- **Food Industry**: Suitable for making sauces, dressings, and emulsified products that require fine dispersion and temperature control. The vacuum system ensures that the final product is free from air bubbles and has a smooth texture.- **Pharmaceutical Industry**: Used for manufacturing ointments, emulsions, and creams where precise control over particle size, temperature, and mixing is required to ensure product efficacy.- **Chemical Industry**: Applied in the production of paints, adhesives, and emulsions where uniform particle dispersion and stable emulsions are critical for product performance.
Working Principle The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank. Detailed Photos
Product Parameters

No.	Model:	HWVM-LT-200L
1	Working capacity	200L
2	Heating method	Steam/electric
3	Mixing type	Upper frame oar scraper mixer
4	Mixing motor power	2.2KW
5	Mixing frequency inverter	2.2KW
6	Mixing speed	0-65rpm
7	Homogenizer type	Bottom homogenizer with frequency inverter
8	Homogenizer power	5.5KW
9	Homogenizer speed	0-3000rpm(50Hz)/0-3600rpm(60Hz)
10	Hydraulic lifting system	0.75KW
11	Vacuum system	Water cycle vacuum pump, power:1.1KW
12	Control method	Button control/HMI
13	Frequency inverter	Delta/Panasonic/Mitsubishi
14	Electrical components	Delixi
15	Jacket	Double jacket,3 layers
16	Tank's materials	Inner layer 4mm/SUS316Middle layer 4mm/SUS304Outer layer 3mm/SUS304

FAQ 1. Q: Are you a manufacturer or just a trading company? A: Foshan Henwi Technology company is one of the top technology-oriented machinery manufacturer in China. 2. Q: I am new in this field , can you recommend the whole production line? A: We can recommend you the whole production line depends on what products you will make: (1). If for paste or cream product, the following machine we will recommend you: RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (2). If for liquid product, the following machine we will recommend you: RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (3). If for Perfume, the following machine we will recommend you: RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc., (4). There are Full automatic production line and Semi automatic production line for your option.3. Q: What is your payment term? A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.4. Q: What is your delivery day? A: Our delivery day is about 15-30 days after receive the deposit.
