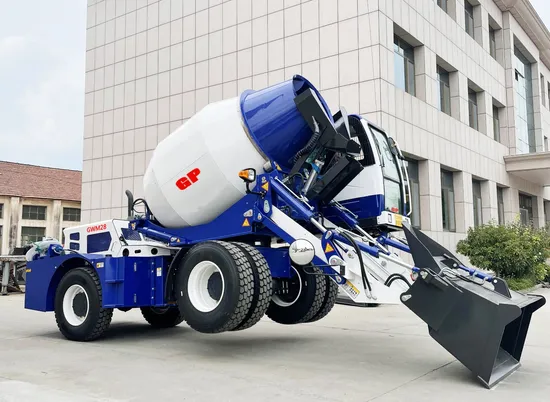

Self Loading Small Mobile Concrete Mixer Machine

Product Description

Product Description

Description of the advantages of the product
1,Drive mode:the engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive.
2,Driver's seat: widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat.
3,Hydraulic system: Open type oil, plunger type motor, two gear pumps to participate in the work.
4,Joystick: two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank.
5,Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge.
6,Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine.
7,Braking: use a small servo pump to enable dual circuit independent braking, and use a single wheel 4-piston vehicle 16 piston to increase the double brake caliper.
8,Steering: Articulated steering with high pressure bearing.
9,Other: Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning.
PARAMETRERS

Item	characteristic	GWM28	GWM35	GWM40
1	Mixing tank output capacity	2.8cbm	3.5cbm	4.0cbm
2	height of the discharge port	1800m	1800mm	2000mm
3	cab and the tank rotate horizontally	270°(left 90°+ right 180°)
4	output capacity	12.5cbm/h	15.5cbm/h	18cbm/h
5	diesel engine (YUCHAI brand)	YCD4102(supercharged type)	YCD4J22T-116	YCD4J22T-125
6		4 cylinders
7		water-cooled,
8		2200rpm	2400rpm	2600rpm
9		rated power 78KW	rated power 85KW	rated power 91KW
10	Drive mode	engine directly connected to torque converter
11	Gradeability	40°	40°	40°
12	speed	low speed:0-25km/h
13		high speed:0-40km/h
14	Bucket capacity	0.5cbm	0.5cbm	0.7cbm
15	Removable Chute	1500mm
16	tyres ( vacuum tire)	12R-22.5	12R-22.5	16R-22.5
17	Power System	24V
18	Fuel tank	130L	130L	135L
19	Water tank	700L	700L	800L
20	hydraulic oil tank	130L	130L	135L
21	Weight	7500kg	8500kg	9200kg
22	overall dimension(mm)	L*W*D:6900*2600*3300	L*W*D:7100*2750*3300	L*W*D:7600*2950*3400
23		wheelbase:2903	wheelbase:2903	wheelbase:3000
24		distance between tyres:1800	distance between tyres:2100	distance between tyres:2150
25		Turning radius:2900	Turning radius:2900	Turning radius:3000
26	cabin	closed cabin with AC
