Powder Coating for Agricultural Machinery

Product Description

Powder Coating for Agricultural Machinery
1. Product Description:

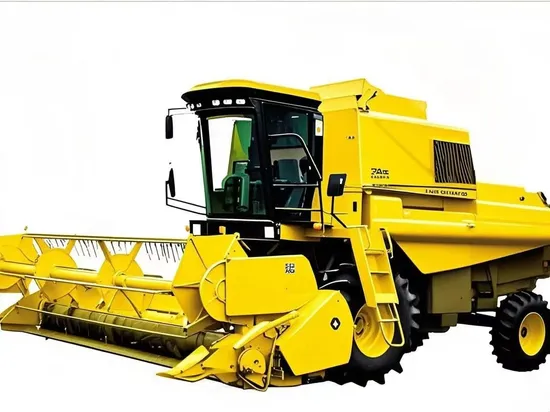

Powder coatings for agricultural machinery are specialized coatings designed to protect and enhance the appearance of farming equipment.Widely used in the painting of various mechanical such as tractor,plow,harrow,seeder,fertilizer spreader,sprayer,harvester,thresher,combine harvester,rice mill,flour mill,oil press...........
They offer excellent resistance to abrasion, impact, and corrosion. Agricultural machinery often operates in harsh environments with exposure to soil, fertilizers, pesticides, and varying weather conditions. Powder coatings form a tough, long - lasting film that can withstand these challenges, extending the lifespan of the equipment.
2. Product Application and Advantage:
Powder coatings for agricultural machinery can be widely applied to various types of agricultural machinery and related equipment:

- Tillage Machinery: Components of rotary tillers, plows, tillage tools, cultivators, and mini - tillers.

- Planting Machinery: The outer shells and key parts of equipment such as transplanters and seeders.

- Harvesting Machinery: Important parts of harvesters, threshing cylinders, and threshers.

- Irrigation and Drainage Machinery: Used for components like water pump impellers and valves.

- Livestock Machinery: Covers the surface coating of various machinery in livestock farming.

- Others: Including large and small tractors, land - leveling machinery, and can also be used for the maintenance and renovation of agricultural machinery to repair worn - out parts.

Advantages

- Excellent Protection Performance: It has good corrosion resistance, capable of withstanding the erosion of chemical substances such as acid rain and fertilizers. With strong weather resistance, it is not easy to fade or crack after long - term use. Also, it has excellent mechanical properties, being impact - resistant and scratch - resistant, which can effectively reduce the wear of components and extend the service life of the equipment.

- High - quality Coating: The coating thickness is uniform and controllable, reducing material waste. It has excellent adhesion, flexibility, high hardness, and strong scratch - resistance.

- Good Decorativeness: Powder coatings are bright in color and fluid, giving agricultural machinery a high - gloss, high - leveling effect with good color saturation, which makes it aesthetically pleasing.

- High Comprehensive Benefits: Reduces the downtime of equipment due to protection problems and improves operation efficiency. Lowers the frequency and cost of maintenance and replacement of components, saving maintenance costs.

- Environmental Advantages: Powder coatings are solvent - free. Compared with traditional quick - drying solvent - based coatings, they produce less volatile organic compounds (VOCs), making them more environmentally friendly.
3. Product Specification:

Technical Data Sheet
	Powder type:Powder Coating for Agricultural Machinery
No.	Item	Technical Index	Remark
1	Condition in Container	Uniform color, loose, and no caking
2	Density	1.2~1.8 g/cm³
3	Residue on Screen (180 Mesh)	<0.6%
4	Tilt Flowability(150±2ºC 15 min)	10~70mm
5	Gelation Rate(200±2ºC)	60~180 Sec
6	Curing Conditions	180~200±2ºC 15~20 minutes
7	Appearance	Flat/Wrinkle/Sand
8	Film Thicknes	100-120 μm
9	Gloss	High gloss 85~100% Semi-high gloss 51~84% Gloss 15~50% Matte 0~14%
10	Color	Consistent with the standard color sample agreed upon by the buyer and the seller
11	Impact Strength	50 kgCm
12	Pencil Hardness >=	2H (no scratches)
13	Adhesion (Cross-Cut Method)	Grade 0
14	Bend Test (Conical Axis)	3 mm pass
15	Erichsen Test >=	6 mm
16	Acid Resistance(3%HCL240h)	Film remains unchanged
17	Alkali Resistance (5%NaOH168h)	Film remains unchanged
18	Salt Spray Resistance (500h) ≤	1 Grade
19	Humidity and Heat Resistance (1000h) ≤	1 Grade
20	Outdoor Exposure Test for 12 Months	Good, no powdering phenomenon

4.Our Products:
5.Our Certificate:
WRAS certificate issue by England
6. Packing & Delivery:
Polyethylene bag:25kg/carton or 20kg/carton
Pallet:1 ton/pallet
The size of carton:39×29x33cm
7. Our Coating Show:
Our products have been exported to many overseas countries such as:Turkey,Italy,Iran,Thailand,India,Egypt,Russia,Poland and etc.
8. Our factory:
Yantai Yuanli Corp., Ltd. supplies powder coating technology and raw material all around the world.
The more excellent product performance-provide you with your required equipments;
The better product effect-provided you with your required economic profit;
The better product capability-provide you with your required quality;
The better after sale service-provide you with good problem-solution.
We are not only provide good products to customer, but also provide our customer good formulation to help customer produce best quality powder coating.
9. Our Advantage and Service:
-Technical Support Online Service Provided
-According to customer's requirement, we provide professional excellent formulation engineer, etc.
-On-site Training Service Provided
-In customer factory, we provide all kinds of training,formulation,etc
-We have professional formulation engineer,weather online or go to customers' factory.We can try our best to offer best service to them.
We sincerely welcome customers from all over the world to visit and negotiate with us.
