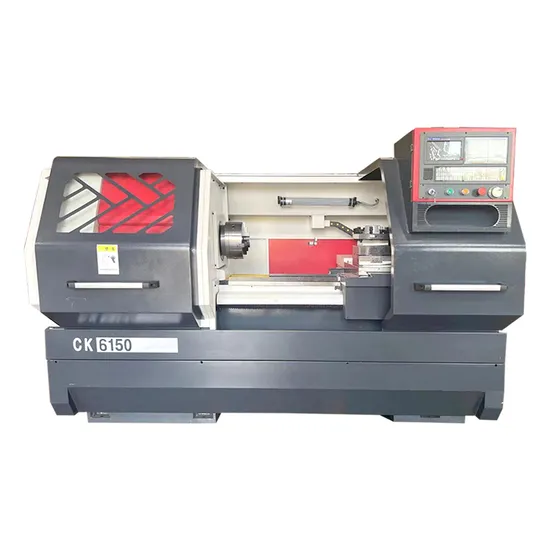

Ck6150 Horizontal Flat Bed CNC Lathe for Sale CNC Turning Lathe Machine
| US$8,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Flat Bed CNC Lathe Ck6150
Machine Type
CNC Flat Bed CNC Lathe Machine
CNC or Not
CNC Automatic Lathe Machine
Function
Turning Milling Boring Drilling Threading
Keyword
Automatic Hydraulic CNC Lathe Machine
Control System
Siemens GSK Fanuc Mitsubishi (Optional)
Application
Iron, Steel, Alloy, Aluminum or Other Metal Produc
After-Sales
Onsite or Online Support,All Problems During Warra
Turret Type
4 Station Tool Post,or Choose Horinontal 6 or 8-Po
Stock or Not
Have Stock and Ready to Ship
Production Capacity
30 Set/Month
Product Description
CK6150 Horizontal Flat Bed CNC Lathe for sale CNC Turning Lathe Machine 1.The numerical control system adopts GSK980TDI, GSK original driver, servo motor, transformer, adopts closed casing2.Servo motor drive 4N-M/X axis 6N-M/Z axis
3.Thread device
4.Adopt domestic brand precision ball screw pair
5.Four-station electric tool holder
6.Centralized automatic lubrication system
7.The headstock adopts high and low gear speed change, high torque, heavy cutting, the spindle diameter is 52mm,
8.Standard 250 manual three-jaw self-centering chuck
9.Cooling water pump assembly
10.Manual self-locking tailstock
Machine features
#The bed legs are made of integral castings and have good rigidity.
#Bed width 500mm
#Intermediate chip removal
#Spindle three support
#Two-axis linear guide
Standard configurations:
GSK980TC3 CNC controller, 10 inch manual chuck, manual tailstock, 4-position electric toolpost, stepless spindle speed, 7.5kw spindle motor, X/Z axis ball screw, automatic coolant system, automatic lubrication system Tools & tool box
Optional configurations:
Hydraulic 3-jaw chuck Hydraulic tailstock Servo motor GSK980TDC/Siemens 808D/FANUC CNC controller
Technical parameter
| Technical parameters | Unit | CK6150 |
| Maximum turning diameter on bed | mm | 500 |
| Maximum workpiece length | mm | 750 |
| Cutting length | mm | 700 |
| Maximum cutting diameter | mm | 500 |
| The maximum turning diameter on the slide | mm | 280 |
| Spindle end type and code | mm | A2-8 |
| Spindle front hole taper | mm | Metric 90 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed range | Three-speed frequency conversion | 45-180, 180-750, 600-1600 |
| Main motor output power | Kw | 7.5 |
| Chuck | mm | 250 three-jaw |
| X-axis rapid traverse speed | m/min | 6 |
| Z-axis rapid traverse speed | m/min | 6 |
| X-axis stroke | mm | 295 |
| Z-axis stroke | mm | 750 |
| Tailstock sleeve diameter | mm | 75 |
| Tailstock sleeve stroke | mm | 150 |
| Tailstock spindle taper hole taper | Morse | 5# |
| Tailstock | form manual | |
| Turning time of tool post per station/form | 2S/four stations | |
| Tool holder indexing repeat positioning accuracy | mm | 0.003 |
| Tool size Outer circle cutter | mm | 25×25 |
| The diameter of the boring bar | mm | optional according to the size of the hole |
| Center height (from bed floor) | mm | 1135 |
| Maximum load-bearing shaft | Kg | 400 |
| Disc parts | Kg | 100 |
| Total power supply voltage | V | AC380 |
| Voltage fluctuation range | (-10~+10)% | |
| Frequency | HZ | 50±1 |
| Total power supply | Kw | 18 |
| Total power and contents Main motor | Kw | 7.5 |
| Cooling pump motor | Kw | 0.125 |
| X axis servo motor | Kw | 1.5 |
| Z axis servo motor | Kw | 2 |
| NC unit | KVA | 0.8 |
| Control panel | KVA | 1 |
| Fan, LED light | Kw | 0.2 |
| Knife post motor | 4 positions | YIL-1-4 1Nm |
| Machine weight | kg | 2500 |
